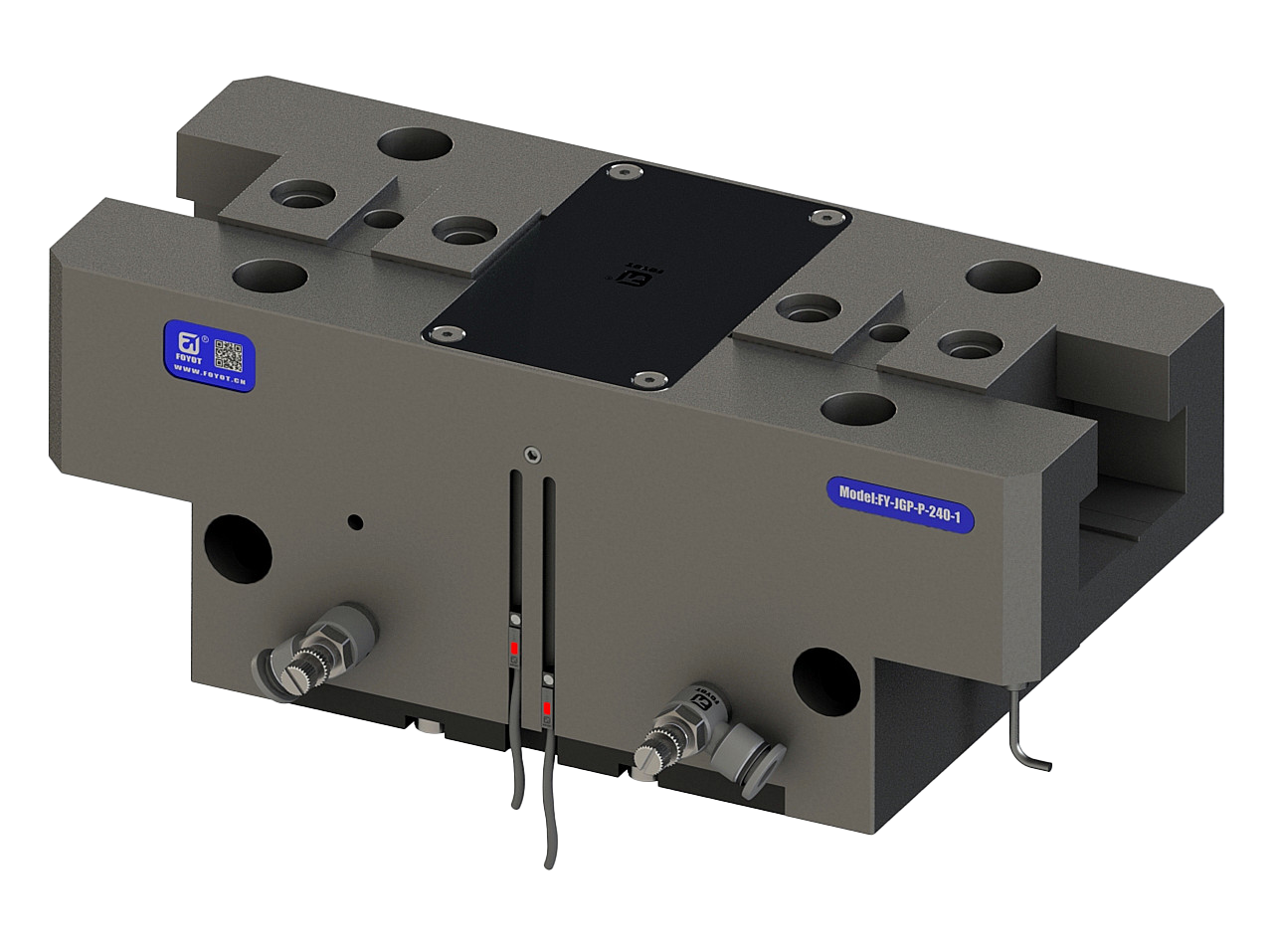

Name:Pneumatic paral lel two claws
Model number (ModeL):FY-JGP-P-240 -1
P:Air Pressure(bar)
L:Exertion Length:40(mm)
Opening and closing range (Stoke):30X2=60mm
Product weight (weight):8.06kg
Max.length attach :320mm. Max. Length attach :320mm
Fitting port Fitting size:PF(G)1/8"
Theoretical Gripping force:Open :5600N
Theoretical Gripping force:Close :5300N
Air consumption per cycle:900cm3
Closeing/Opening time :0.5/0.5sec
Repeat accuracy):0.01mm. Repeat accuracy):0.01mm
Continuation usage amount :100
Operating pressure:5-10bar
Ambient temperature :-5to90℃(-10to130℃)
Lubrication Lubrication: Needless
According to IEC60529 standard safety protection: P40
All data were measured at 6Bar
Repetition accuracy: the detection value after 100 consecutive actions
