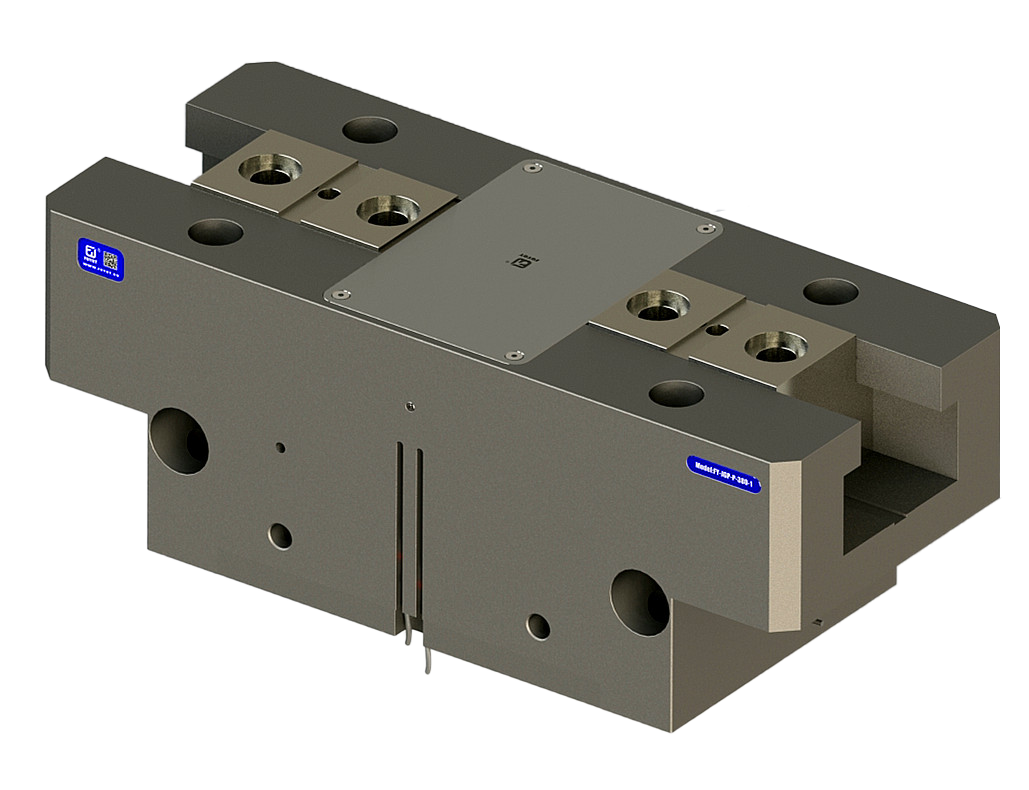

Name:Pneumatic paral lel two claws
Model :FY-JPGP380-1/2
P:Air Pressure(bar)
L: distance to use point (mm)L:Exertion Length:50(mm)
Opening and closing range (Stoke) : 45X2=90mm(/2:2*26=52mm)
Product weight (Weight):26.5kg
Maximum finger length (Max.length attach:400mm(/ 2:350000)
Fitting port (Fitting size):PF(G1/4")
Gripping force:Open. Gripping force:Open:10300N
Theoretical Gripping force:Close :10800N
Air consumption per cycle :2275cm3
Closeing/Opening time :0.6/0.6sec
Repeat accuracy:0.04mm. Repeat accuracy :0.04mm
Continuation usage amount :100
Operating pressure.:5-10bar
Ambient temperature:-5to90℃(-10to130℃)
Lubrication: no need (Needless)
According to EC60529 standard safety protection: IP64
All data were measured at 6Bar
Repetition accuracy: the detection value after 100 consecutive actions
