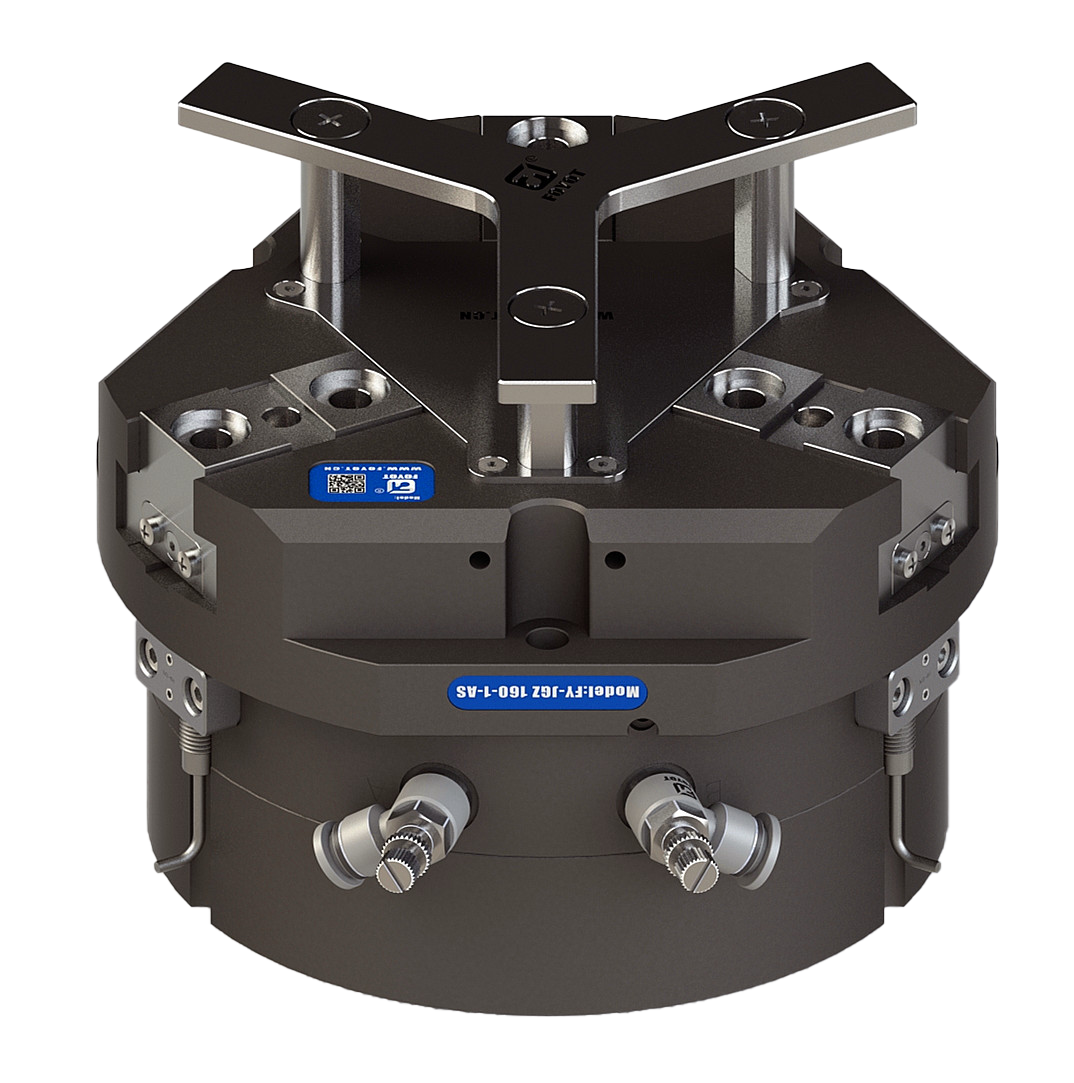

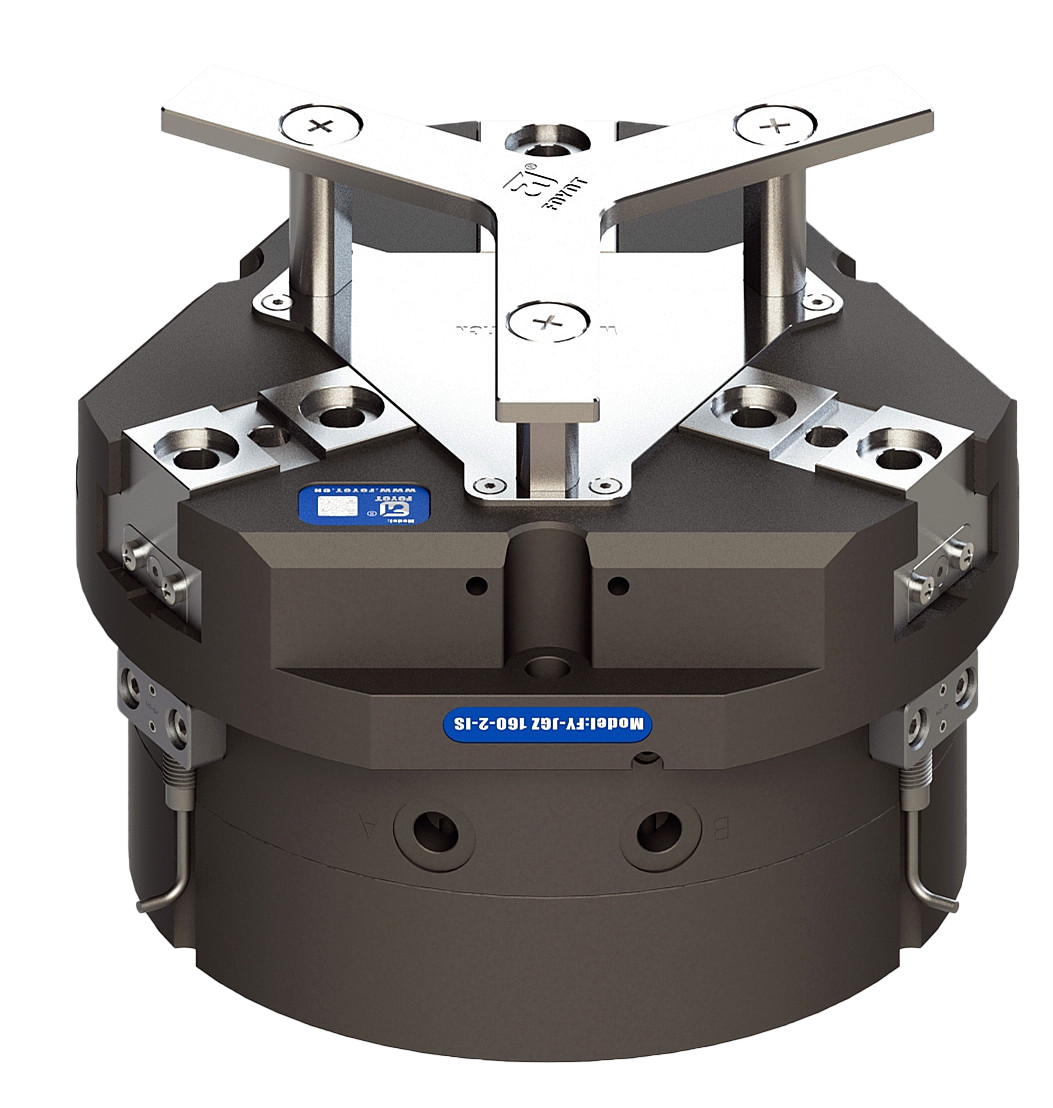

Name:Pneumatic paral lel three claws

ModeL:FY-JGZ160-1-IS

P:Air Pressure(bar)

L:Exertion Length(mm):32mm

Stoke:32mm

Weight:8.0kg

Max.length attach:180mm

itting size:PF(G)1/8"

Gripping force:Open:8480N

Air consumption per cycle:520cm

Closeing/Opening time:0.4/0.8Sec

Repeat accuracy:0.02mm

Continuation usage amount:40

Operating pressure:3-8bar

Ambient temperature:-5to90℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:IP40

All data were measured at6Bar

After 100 consecutive strokes to end positions
