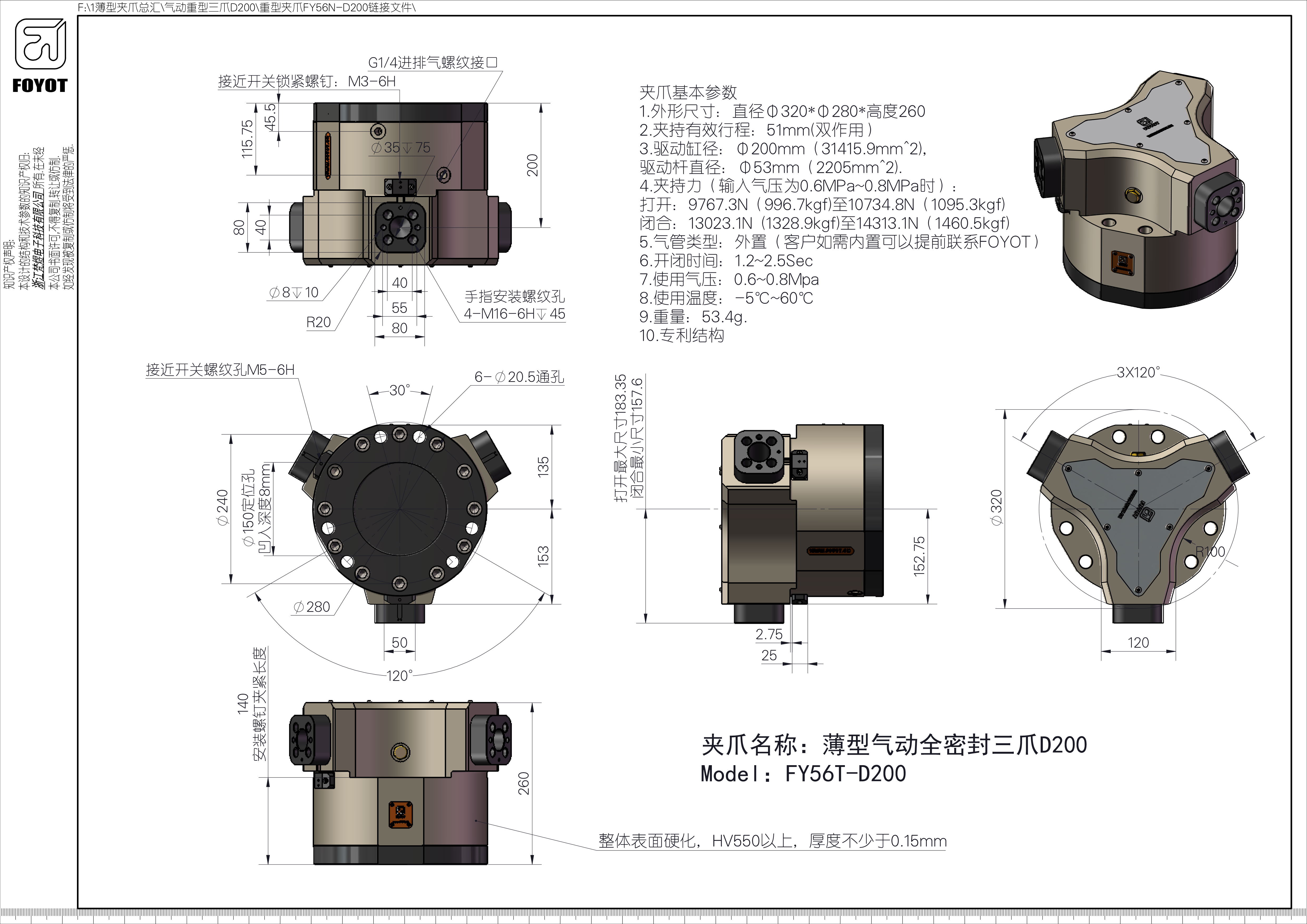

1.Overall dimensions：diameterФ320*Ф280*height 260

2.Effective clamping stroke：51mm（double acting）

3.DriveCylinder diameter：Ф200mm(31415.9mm^2),

    Drive diameter：Ф53mm(2205mm^2).

4.Clamping force (when the input air pressure is 0.6MPa~0.8MPa)：

    Open：9767.3N(996.7kgf)-10734.8N(1095.3kgf)

    Closed：13023.1N(1328.9kgf)-14313.1N(1460.5kgf)

5.Air tube type： external(Customers if they need abuilt-in You can contact in advanceFOYOT)

6.Opening and closing time：1.2~2.5Sec

7.Working air pressure：0.6~0.8Mpa

8.Operating temperature：-5℃~60℃

9.Weight：53.4g.

10.Patent structure
