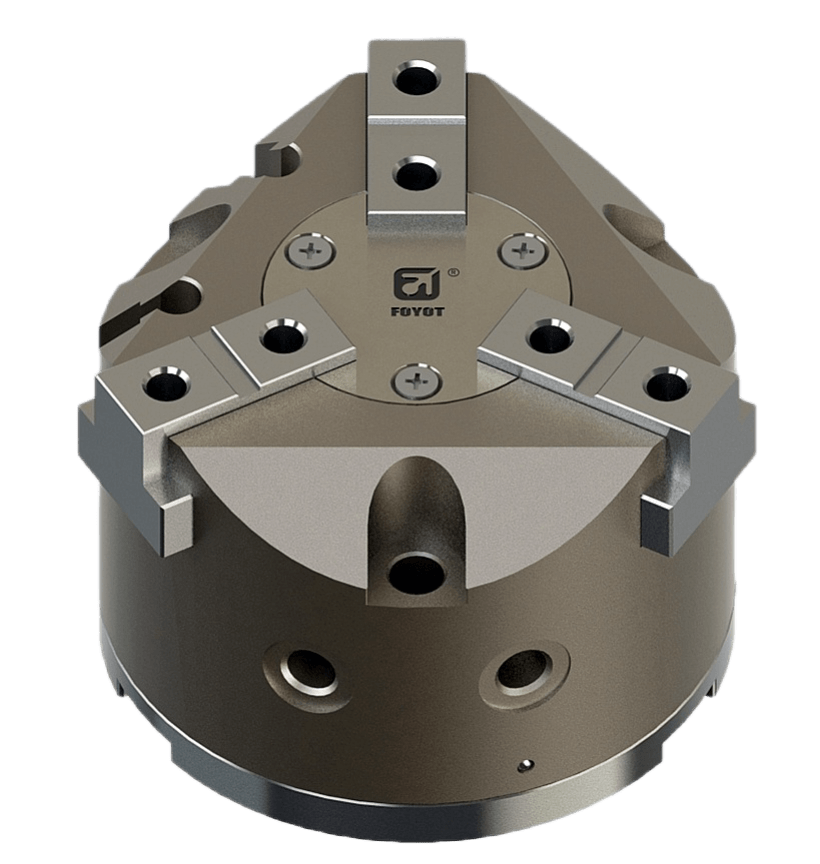

Name:Pneumatic 3-claw

Name:Pneumatic paral lel three claws

Model:FY46(SN)-SMC-D32

P(bar):Air Pressure(bar)

Stoke）：8mm

Weight:0.23kg

Max.length attach:50mm

Fitting size:M5-6H

Gripping force:Open:74N

Gripping force:Close:82N

Closeing/Opening time:0.01/0.01sec

Repeat accuracy:0.02mm

Continuation usage amount:60

Operating pressure:1-6bar

Ambient temperature:-5to60℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:IP64

All data were measured at5Bar

After 100 consecutive strokes to end positions
