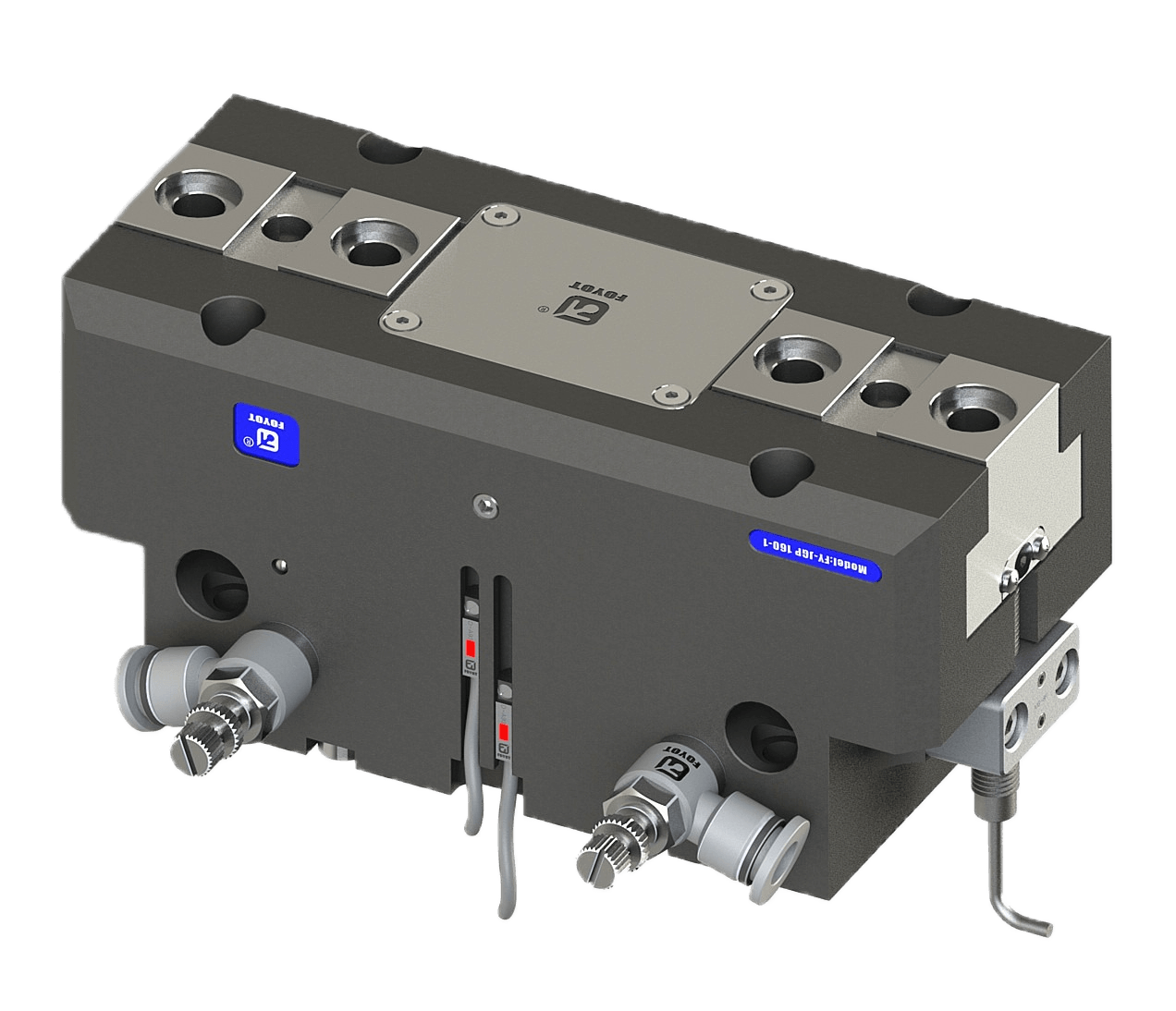

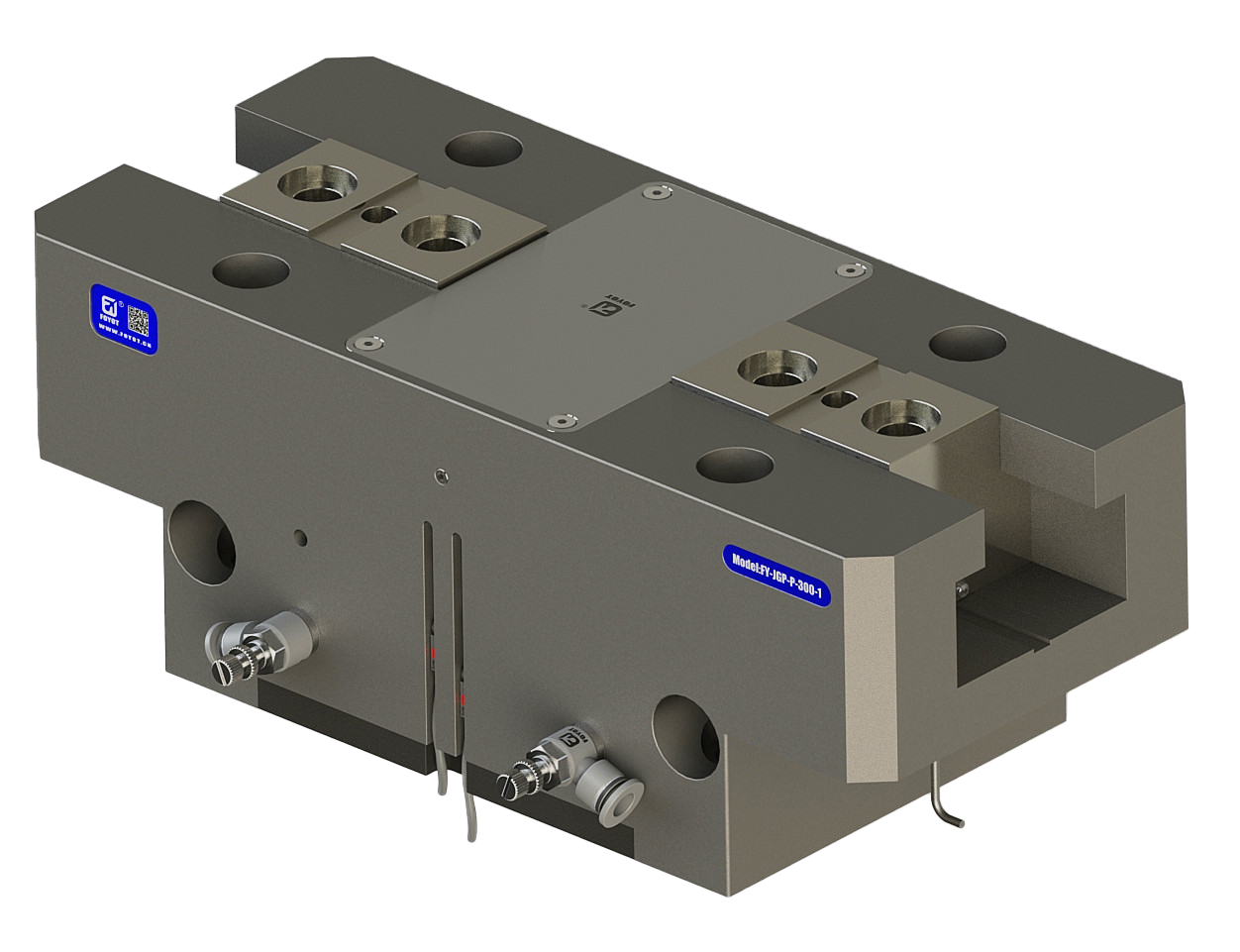

Name:Pneumatic paral lel two claws

Model (Mode I):FY-JPGP300/1/2

P:Air Pressure(bar)

L:Exertion Length:50(mm)

Opening and closing range (Stoke):30X2=70mm

Product weight (Weight):13.5kg

Max finger length (Max.length attach:350mm

Fitting Fitting size :PF(G)1/4"

Gripping force:Open:6800N

The Gripping force is Gripping force:Close:6600N

Air consumption per cycle :1040cm3

Closeing/.Opening time :0.5/0.5sec

Repeat accuracy)::0.04mm. Repeat accuracy)::0.04mm

Continuation usage amount :100

Operating pressure :5-10bar

Ambient temperature :-5to90℃(-10to130℃)

Lubrication: lubrication: Needless

According to EC60529 standard safety protection: IP40

All data were measured at 6Bar

Repetition accuracy: the detection value after 100 consecutive actions
