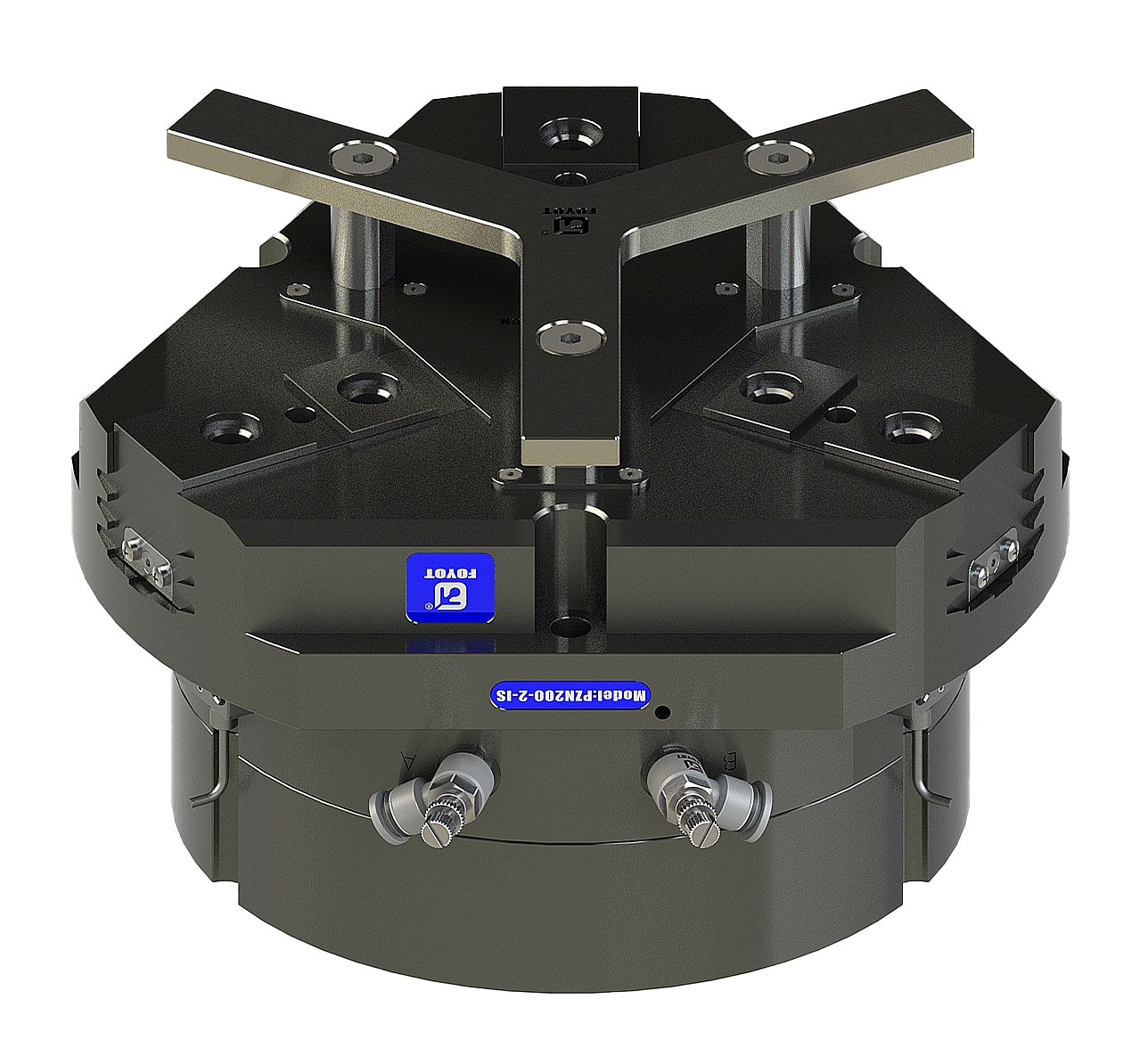

Name:Pneumatic parallel three claws With cut-off protection Normal ly open

ModeL:FY-PZN200-2-IS

P:Air Pressure(bar)

L:Exertion Length(mm)

Stoke:2*14=28mm

Weight:15.7kg

Max.length attach:240mm

Fitting size:PF(G)1/8"

Gripping force:Open:18330N

Air consumption per cycle:1725cm

Closeing/Opening time:1.0/1.5Sec

Repeat accuracy:0.05mm

Continuation usage amount:40

Operating pressure:3-8bar

Ambient temperature:-5to90℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:IP40

All data were measured at6Bar

After 100 consecutive strokes to end positions
