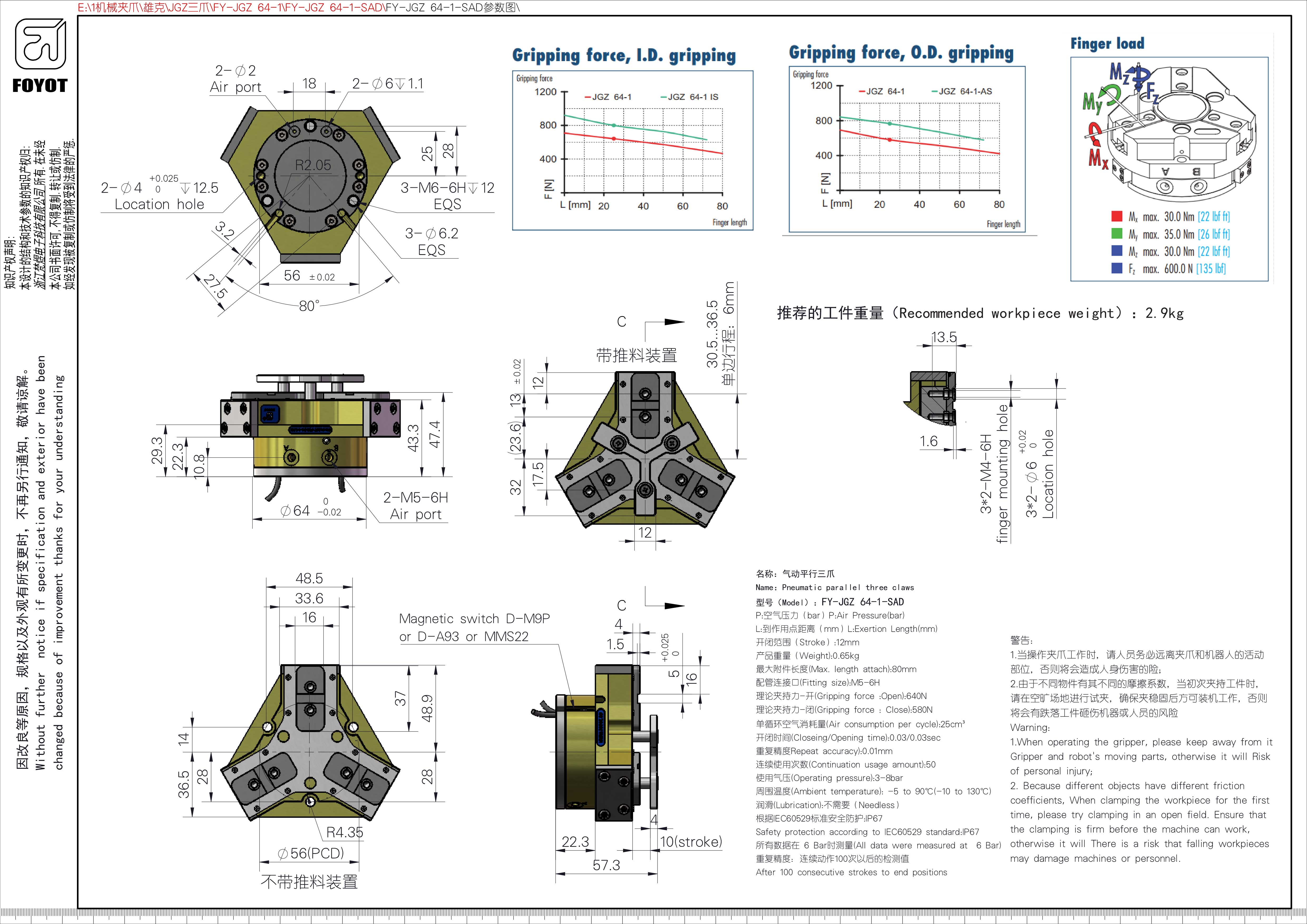

Name:Pneumatic parallel three claws
ModeI:FY-JGZ64-1-SAD
P:Air Pressure(bar)
L:Exertion Length(mm)
Stroke:12mm
Weight:0.65kg
Max.length attach:80mm
Fitting size:M5-6H
Gripping force:Open:640N
Gripping force:Close:580N
Air consumption per cycle):25cm3
Closeing/.Opening time:0.03/0.03sec
Repeat accuracy:0.01mm
Continuation usage amount):50
Operating pressure):3-8bar
Ambient temperature:-5to90℃(-10to130℃)
Lubrication:Needless
Safety protection according to IEC60529 standard:IP67
All data were measured at6Bar
After 100 consecutive strokes to end positions
