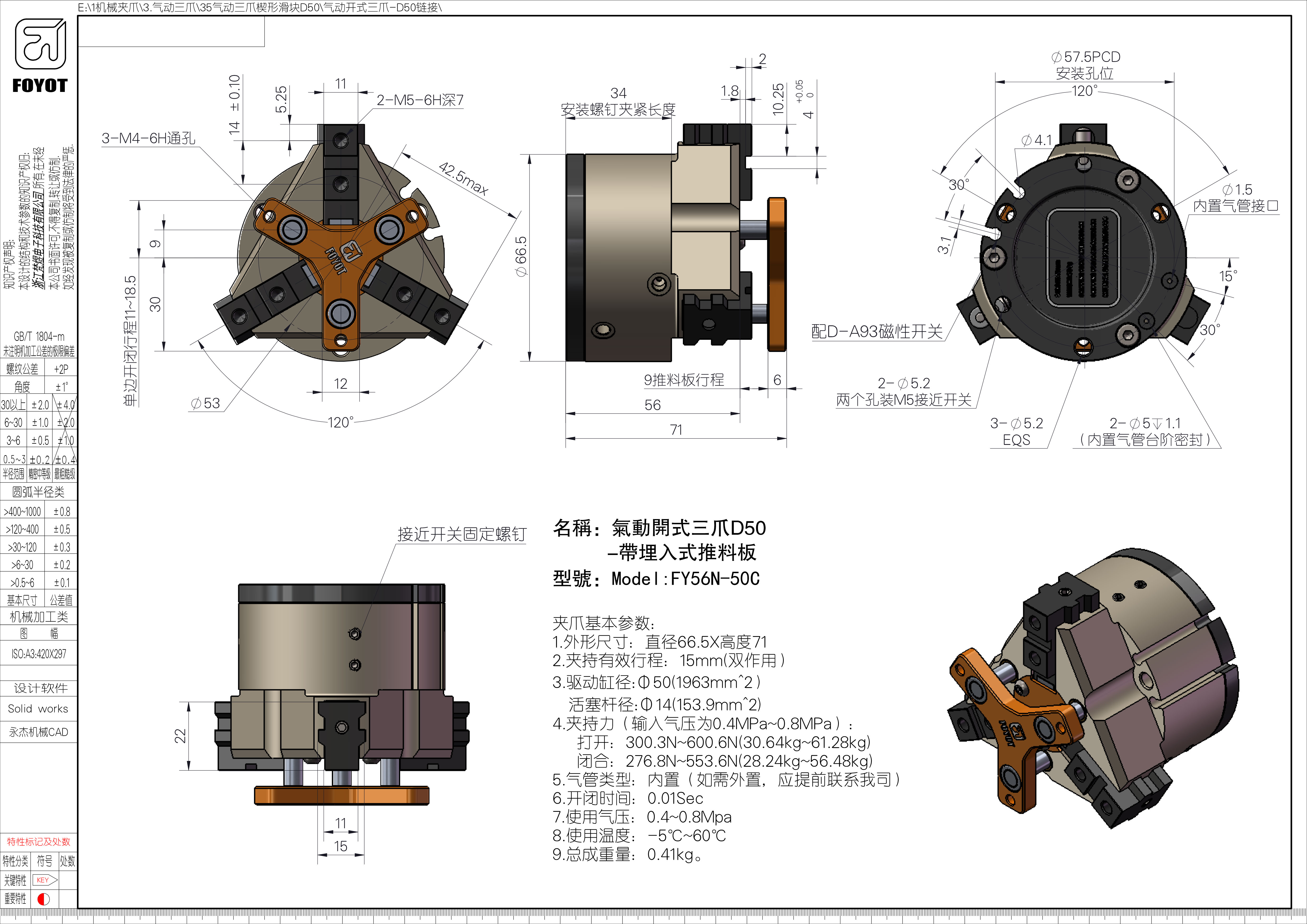

1.Overall dimensions：diameter66.5Xheight71

2.Effective clamping stroke：15mm（double acting）

3.DriveCylinder diameter：Ф50(1963mm^2)

    Piston rod：Ф14(153.9mm^2)

4.Clamping force(Input pressure is 0.4MPa~0.8MPa):

    Open：300.3N~600.6N(30.64kg61.28kg)

    Closed：276.8N~553.6N(28.24kg56.48kg）

5.Air tube type：built-in(customers can contact us in advance)

6.Opening and closing time：0.01Sec

7.Working air pressure：0.4~0.8Mpa

8.Operating temperature：-5℃~60℃

9.Weight：0.41kg。
