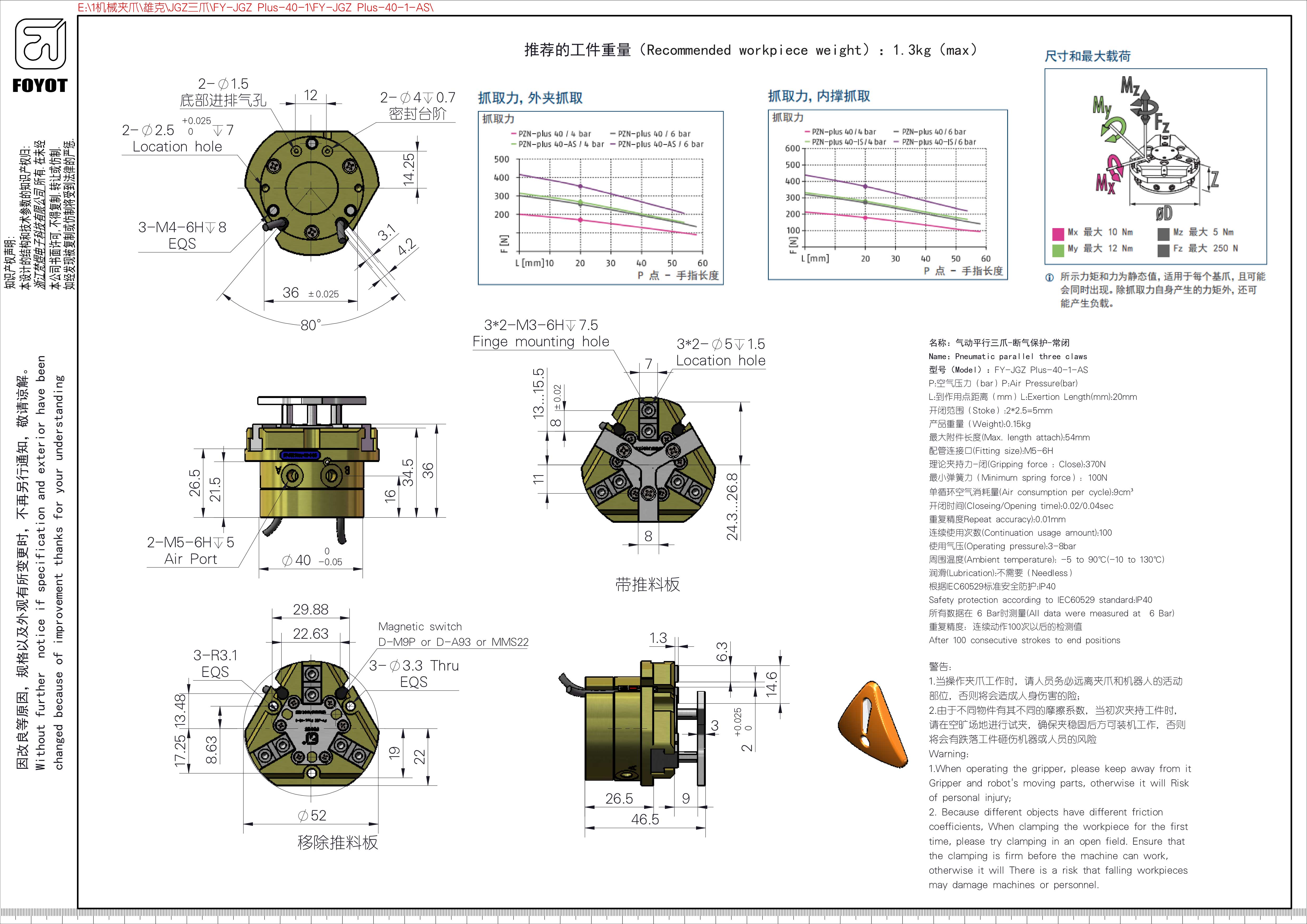

名稱：氣動平行三爪-斷氣保護-常閉

Name:Pneumatic paral lel three claws

型號(ModeI):FY-JGZ Plus-40-1-AS

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm):20mm

開閉範圍(Stoke):2*2.5=5mm

產品重量(Weight):0.15kg

最大附件長度(Max.length attach):54mm

配管連接▣(Fitting size):M5-6H

理論夾持力-閉（Gripping force:Close):370N

最小彈簧力(Minimum spring force)：100N

單循環空氣消耗量(Air consumption per cycle):9cm³

開閉時間(Closeing/Opening time):0.02/0.04sec

重復精度(Repeat accuracy):0.01mm

連續使用次數(Continuation usage amount):100

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature:-5to90℃(-10to130℃)

潤滑(Lubrication):不需要（Needless)

根據1EC60529標準安全防護：IP40

Safety protection according to IEC60529 standard:IP40

所有數據在6Bar時測量(All data were measured at6Bar)

重復精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
