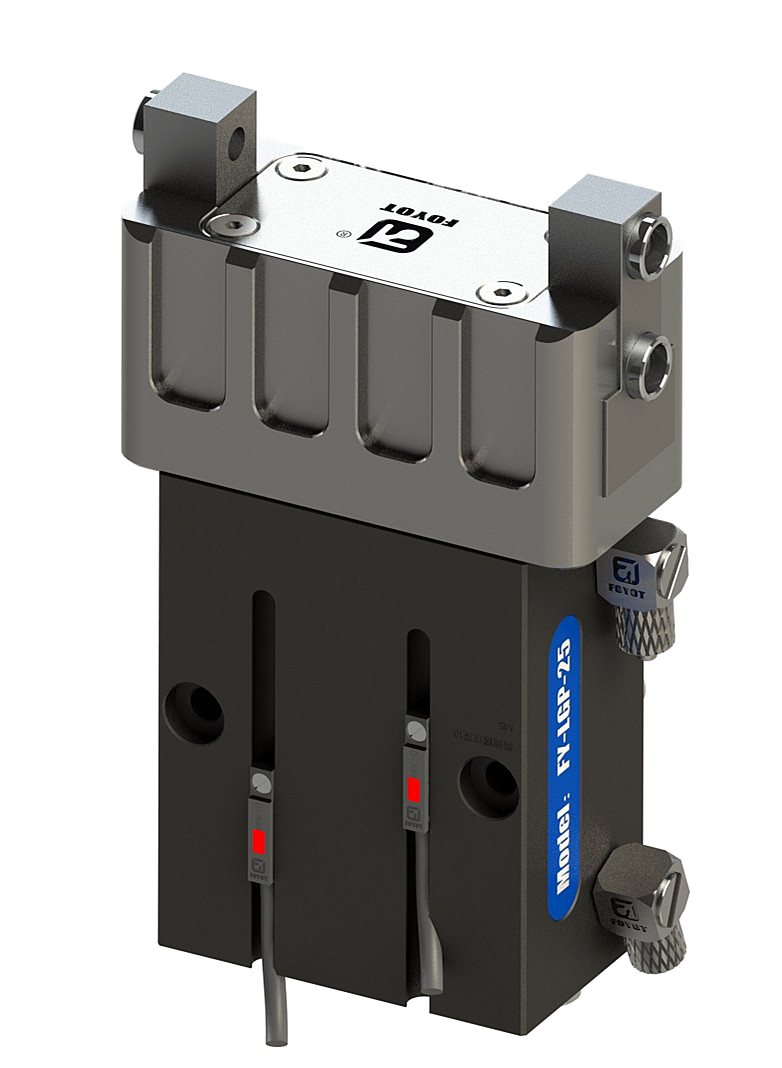

名称：气动平行两爪

Name:Pneumatic paral lel two claws

型号(Mode I):FY-LGP25

P:空气压力(bar)P:Air Pressure(bar)

L:到作用点距离(mm)L:Exertion Length(mml:15mm.

开闭范围(Stoke)：2*8mm=16mm

产品重量(Weight):0.67kg

最大附件长度(Max.length attach):50mm

配管连接口（Fitting size:M5

理论夹持力-开（Gripping force:Open:438N

理论夹持力-闭(Gripping force:Close):380N

单循环空气消耗量(Air consumption per cycle):27cm3

开闭时间(Closeing/Opening time):0.05/0.05sec

重复精度Repeat accuracy.:0.02mm

连续使用次数(Continuation usage amount):60

使用气压(Operating pressure):3-8bar

周围温度(Ambient temperature:-5to90℃(-10to130℃)

润滑(Lubrication:不需要（Needless)

根据IEC60529标准安全防护：P40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end

positions
