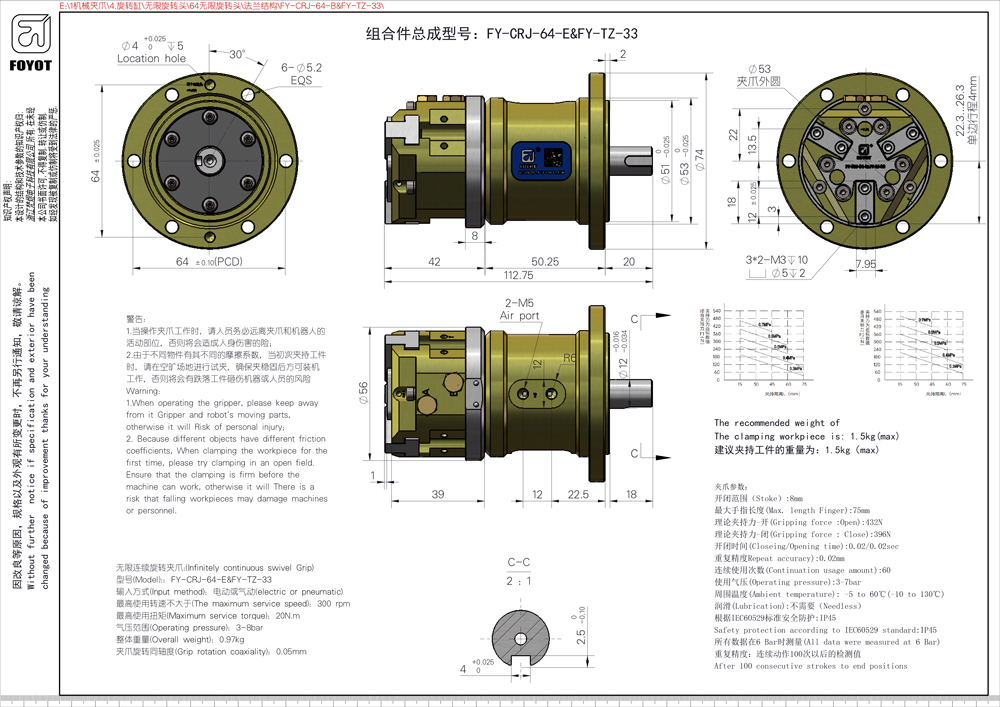

夹爪参数：

开闭范围(Stoke):8mm

最大手指长度(Max.length Finger):75mm

理论夹持力-开(Gripping force:Open):432N

理论夹持力-闭(Gripping force:Close):396N

开闭时间(Closeing,/0 pening time):0.02/0.02sec

重复精度Repeat accuracy):0.O2mm

连续使用次数(Continuation usage amount):60

使用气压(Operating pressure)):3-Tbar

周围温度(Ambient temperature):-5to60℃(-10to130℃)

润滑(Lubrication):不需要(Needless)

根据IEC60529标准安全防护：IP45

Safety protection according to

IEC60529 standard:IP45

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
