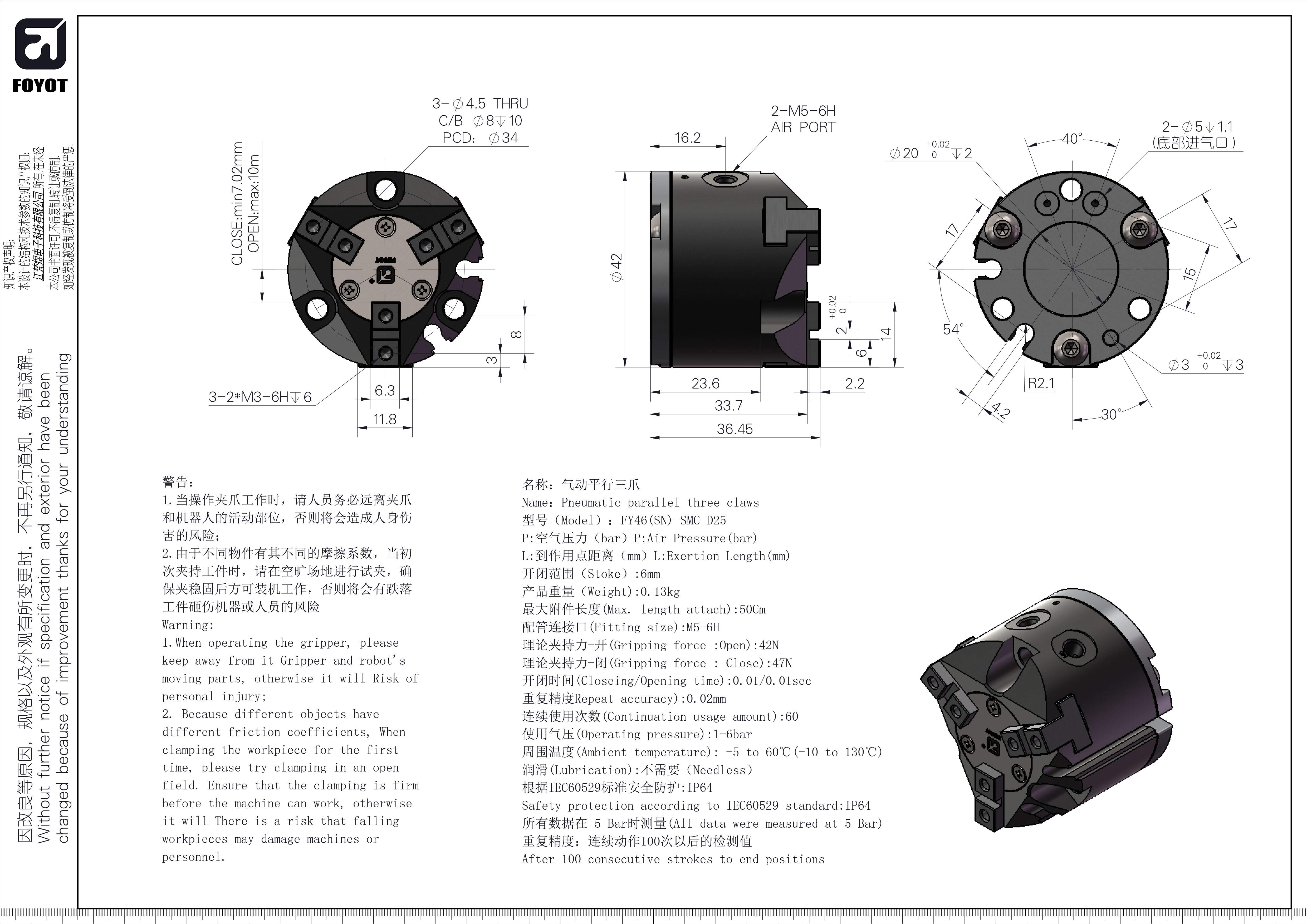

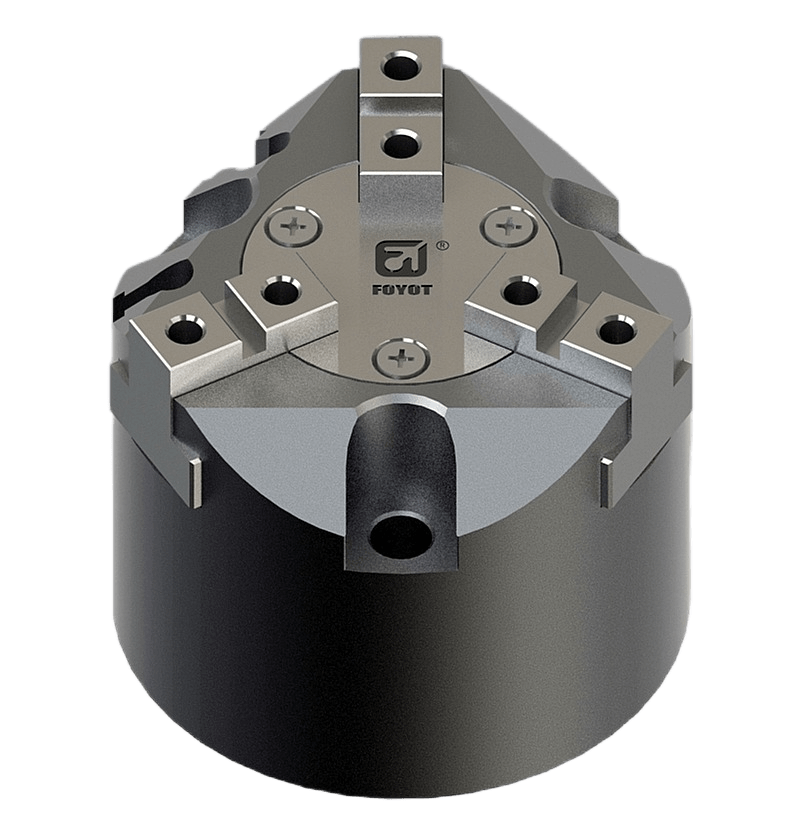

名稱：氣動平行三爪

Name:Pneumatic parallel three claws

型號(Mode1):FY46(SN)-SMC-D25

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm)

開閉範圍(Stoke):6mm

產品重量(Weight):0.13kg

最大附件長度(Max.length attach):50cm

配管連接口(Fitting size):M5-6H

理論夾持力-開(Gripping force:Open):42N

理論夾持力-閉(Gripping force:C1ose):47N

開閉時間(Closeing,/0 pening time):0.01/0.01sec

重復精度Repeat accuracy):0.02mm

連續使用次數(Continuation usage amount):60

使用氣壓(Operating pressure):1-6bar

周圍溫度(Ambient temperature):-5to60℃(-10to130C)

潤滑(Lubrication):不需要(Needless)

根據IEC60529標準安全防護：IP64

Safety protection according to IEC60529 standard:IP64

所有數據在5Bar時測量(All data were measured at5Bar)

重復精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
