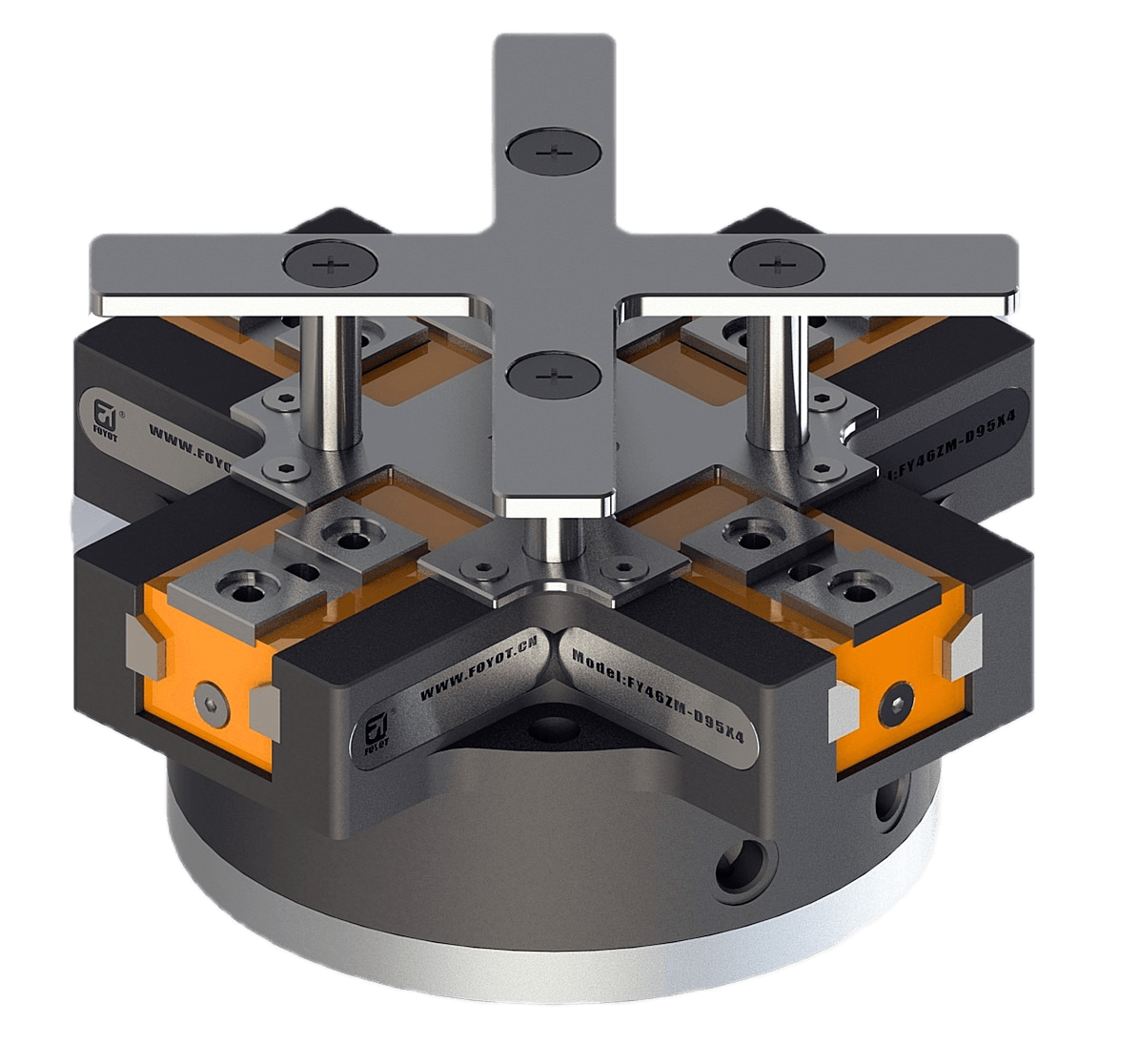

Name:Pneumatic paral lel three claws

Model:FY46ZM-D125X4

P(bar):Air Pressure(bar)

L:Exertion Length(mm)

Stoke:32mm

Weight:6.6kg

Max.length attach:160mm

Fitting size:PF(G)1/8"

Gripping force:Open:4600.9N

Gripping force:Close:4326.2N

Closeing./Opening time:0.50/0.50sec

Repeat accuracy):0.05mm

Continuation usage amount:30

Operating pressure:3-8bar

Ambient temperature:-5to60℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:P64

All data were measured at7Bar

After 100 consecutive strokes to end positions
