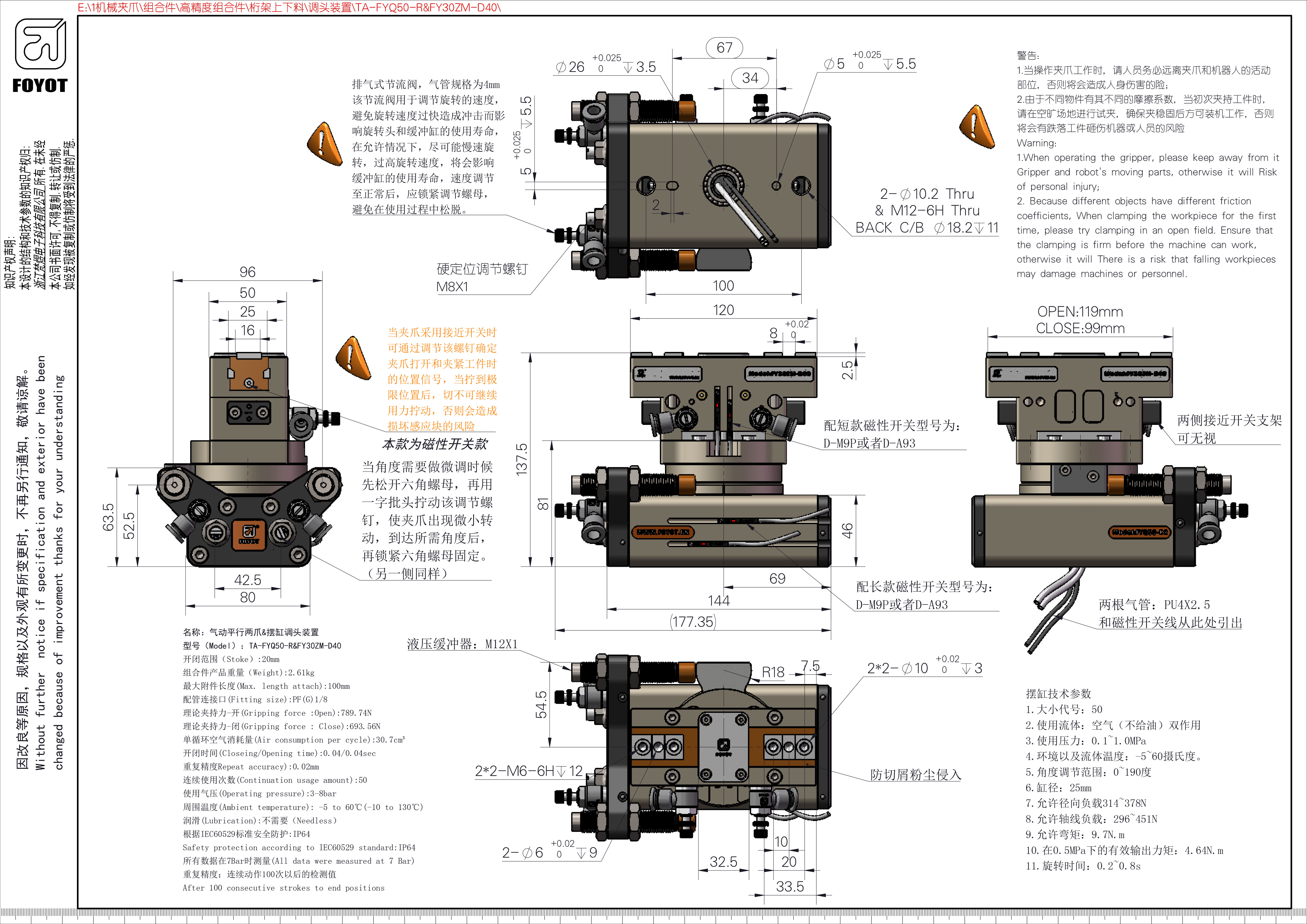

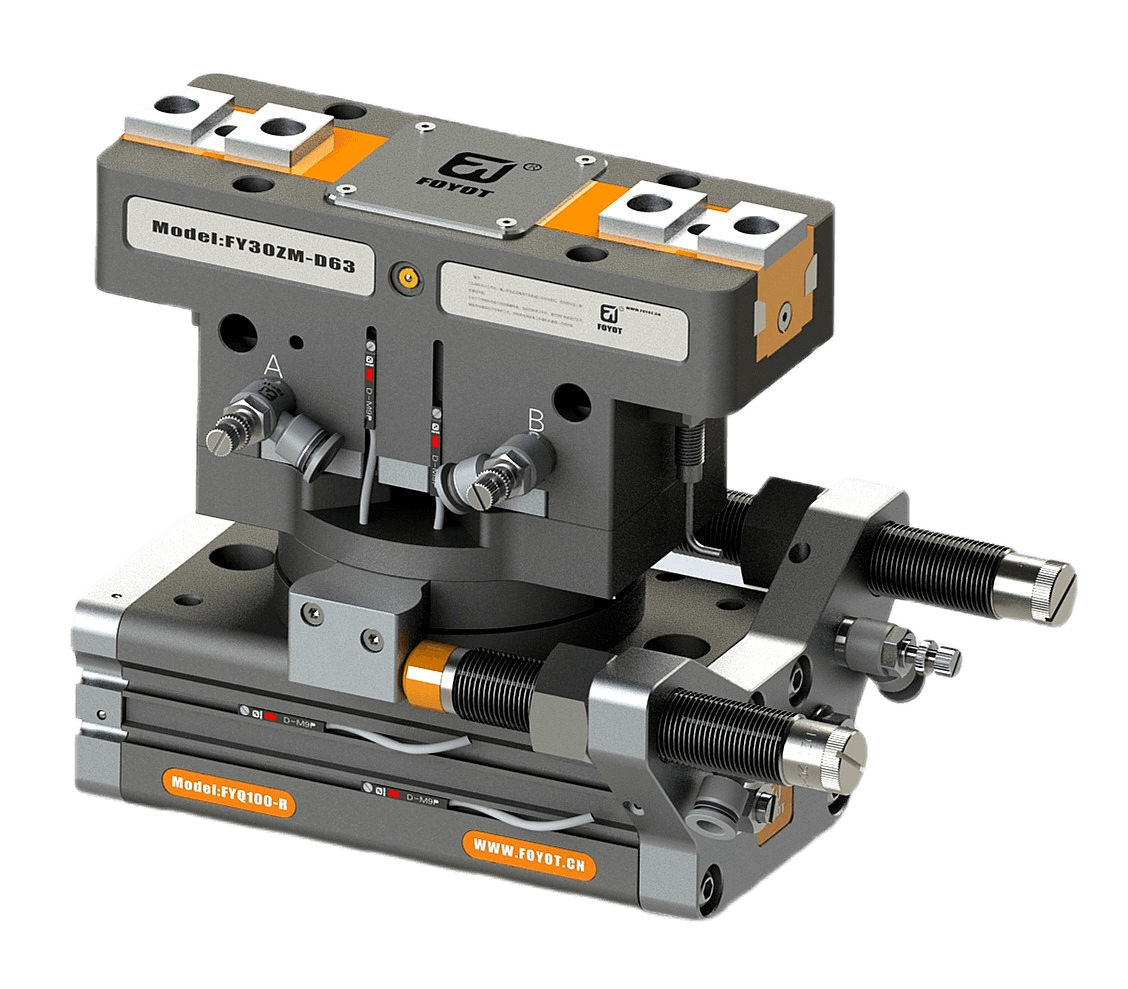

Truss loading and unloading module:Truss two claw turning module

TA-FYQ50-R&FY30ZM-D40

Swing cylinder technical parameters

1. Size code:50

2.Working fluid: air (without oil) double acting

3.Operating pressure:0.1~1.0MPa

4.Ambient and fluid temperature:-5~60℃

5. Angle adjustment range: 0~190 Degrees

6.Cylinder diameter:25mm

7.Allowable radial load314~378N

8. Allowable axis load:296~451N

9.Allowable bending moment:9.7Nm

10. Effective output torque at 0.5 MPa:4.64N.m

11.Rotation time:0.2~0.8s


Pneumatic parallel two claws

Model:TA-FYQ50-R&FY30ZM-D40

Stoke:20mm

Weight:2.61kg

Max.length attach:100mm

Fitting size:PF(G)1/8

Gripping force:0pen:789.74N

Gripping force:Close:693.56N

Air consumption per cycle:30.7cm3

CLoseing/0 pening time:0.04/0.04sec

Repeat accuracy:0.02mm

Continuation usage amount:50

Operating pressure:3-8bar

Ambient temperature:-5to60℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:IP64

All data were measured at7Bar

After 100 consecutive strokes to end positions
