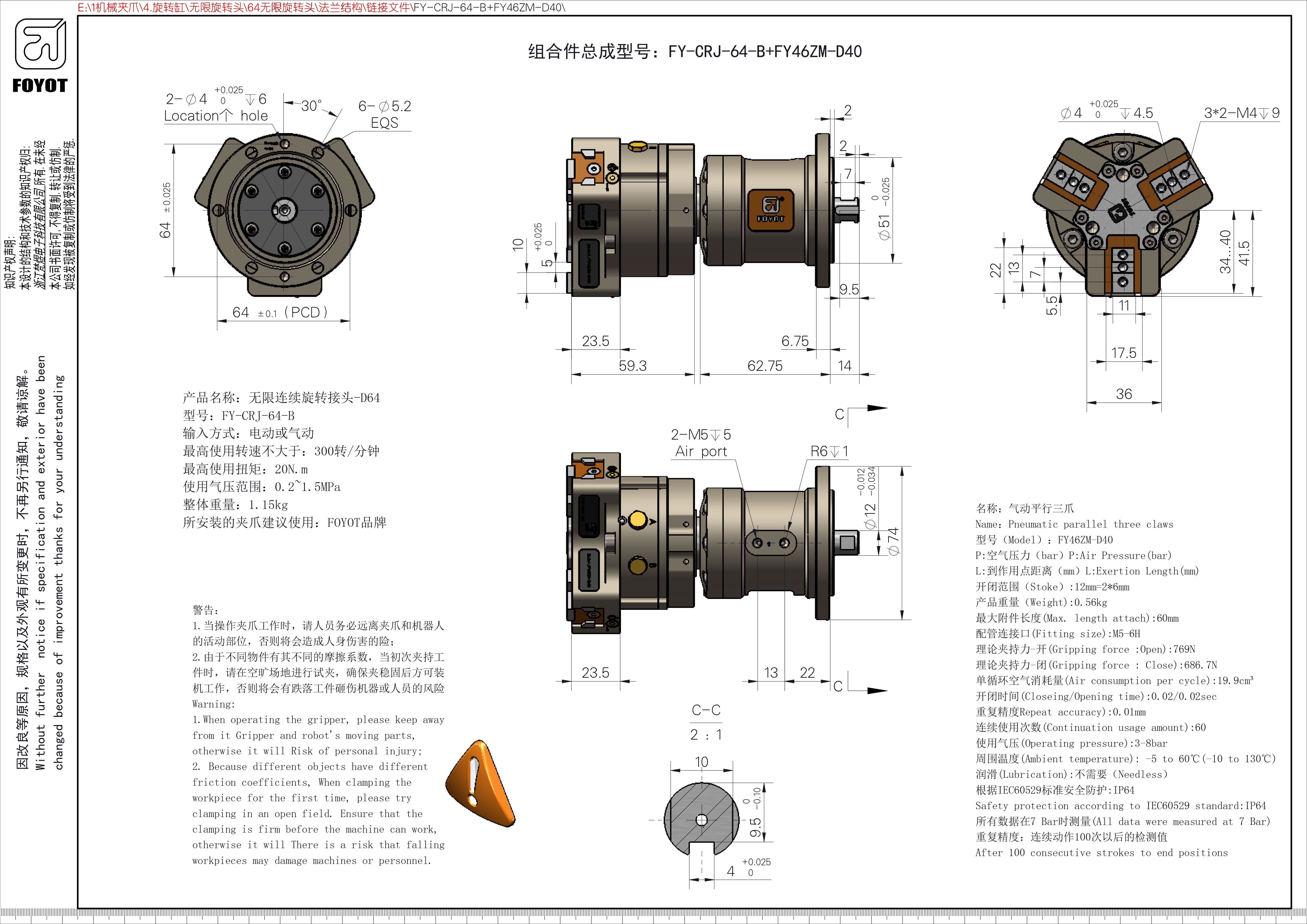

Name：FY-CRJ-64-B

Input method：electric or pneumatic

Maximum operating speed is not greater than：300 rpm

Maximum operating torque：20N.m

Operating pressure range：0.2~1.5MPa

Weight：1.15kg

Recommended gripper: FOYOT

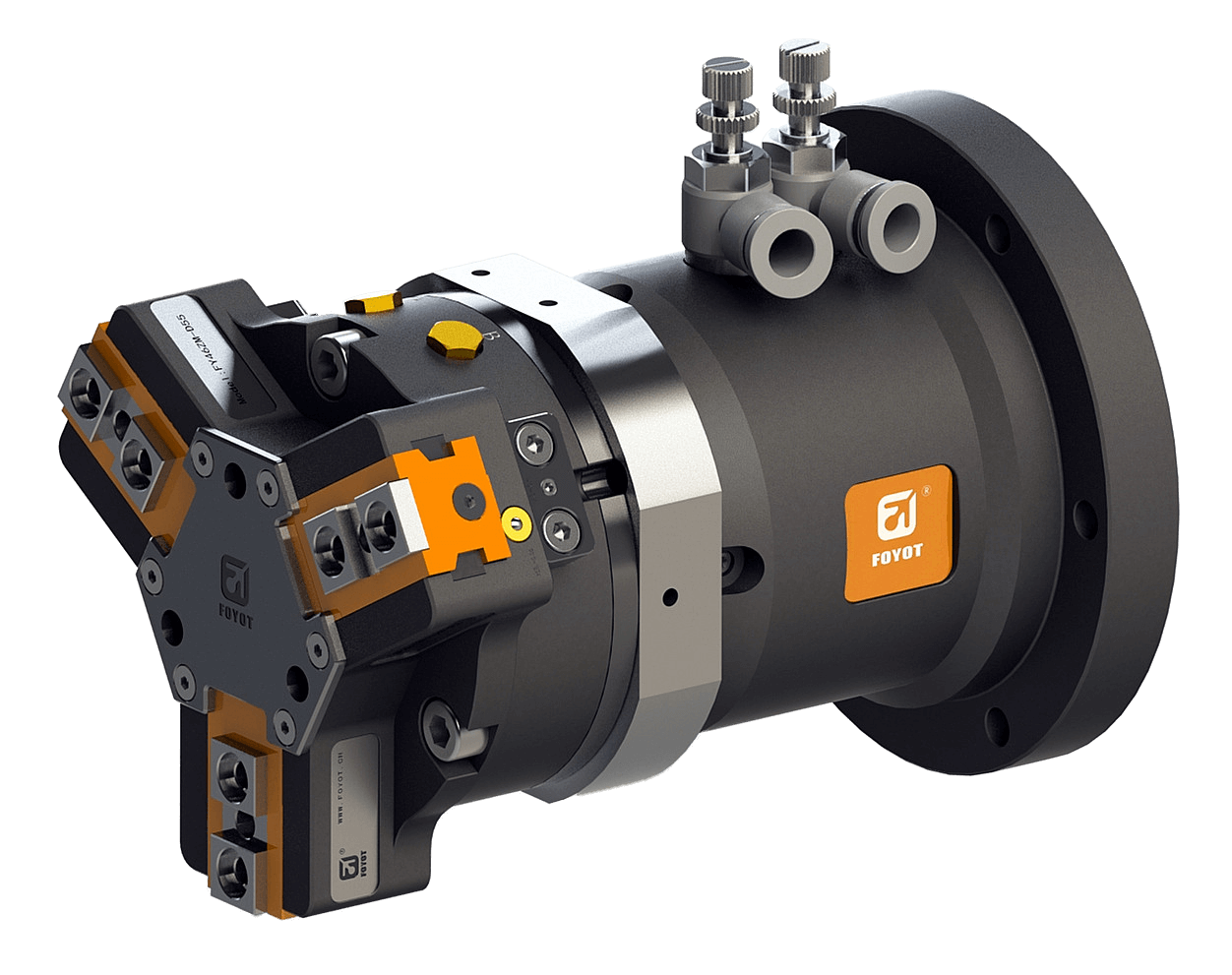

Name:Pneumatic 3-claw

Name:Pneumatic parallel three claws

Model:FY46ZM-D40

P(bar):Air Pressure(bar)

L:Exertion Length(mm)

Stoke：12mm

Weight:0.56kg

Max.length attach:60mm

Fitting size:M5-6H

Gripping force:Open::769N

Gripping force:Close:686.7N

Closeing/.Opening time:0.02/0.02sec

Repeat accuracy:0.01mm

Continuation usage amount:60

Operating pressure:3-8bar

Ambient temperature:-5to60℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:IP64

All data were measured at7Bar

After 100 consecutive strokes to end positions
