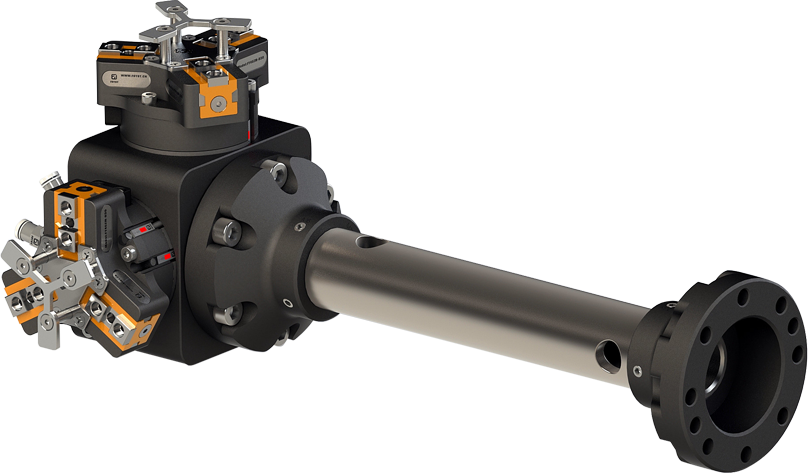

Name:Pneumatic 3-claw Six axis robot loading and unloading

Model:RBT-FY46ZM-D55

P(bar):Air Pressure(bar)

L:Exertion Length(mm)

Stoke:16mm

Weight:3.52kg

Max.length attach:80mm

Fitting size:M5-6H

Gripping force:Open:1689N

Gripping force:C1ose:1634.4N

Air consumption per cycle:46cm³

C1 oseing,/opening time:0.05/0.05sec

Repeat accuracy.:0.01mm

Continuation usage amount:50

Operating pressure:3-8bar

mbient temperature:-5to60℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:IP64

All data were measured at 7 Bar

After 100 consecutive strokes to end positions
