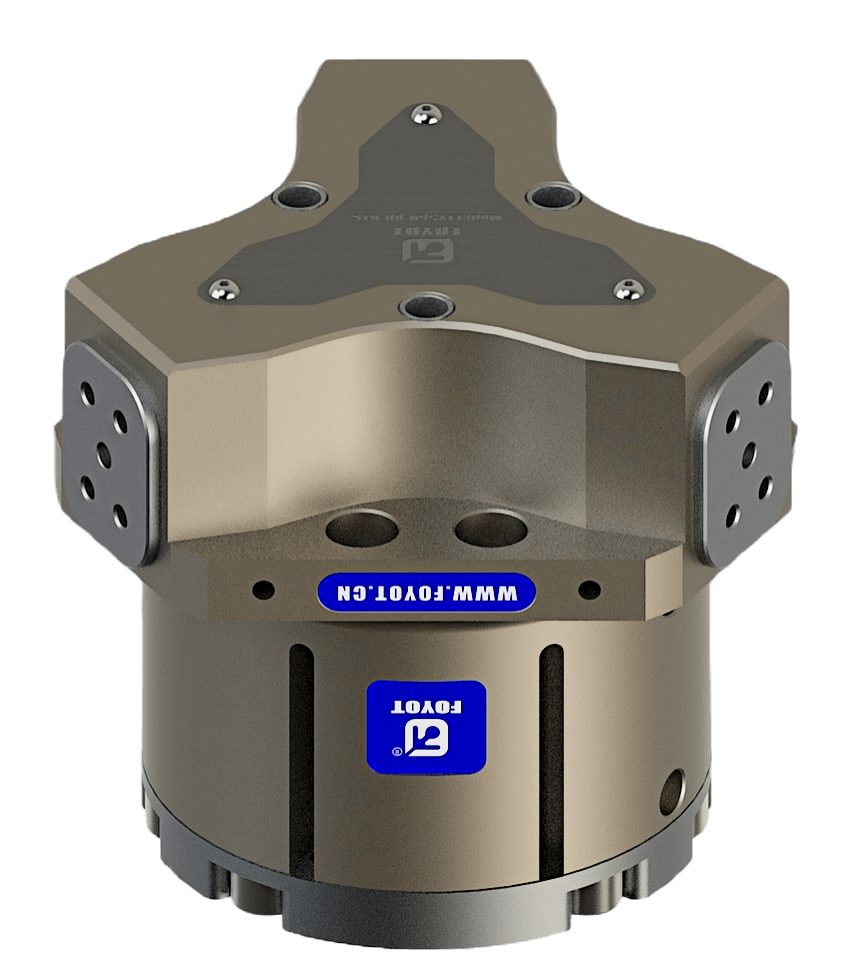

1.Overall dimensions：diameterФ107*Ф86*height74

2.Clip special effective travel：10mm（double acting）

3.DriveCylinder diameter：Ф63mm(3117.25mm^2),

    Drive diameter：Ф20mm(314.16mm^2).

4.Clamping force (when the input air pressure is 0.4MPa~0.8MPa)

    Open：582.9N(59.48kgf)-1165.85N(118.96kgf）

    Closed：524.2N(53.5kgf)-1048.4N(107kgf)

5.Air tube type： external（customers can contact us in advance if they need a built-in air tube）

6.Opening and closing time：0.15Sec

7.Working air pressure：0.4~0.8Mpa

8.Operating temperature：-5℃~60℃

9.Weight：1.1kg.

10.Patent structure
