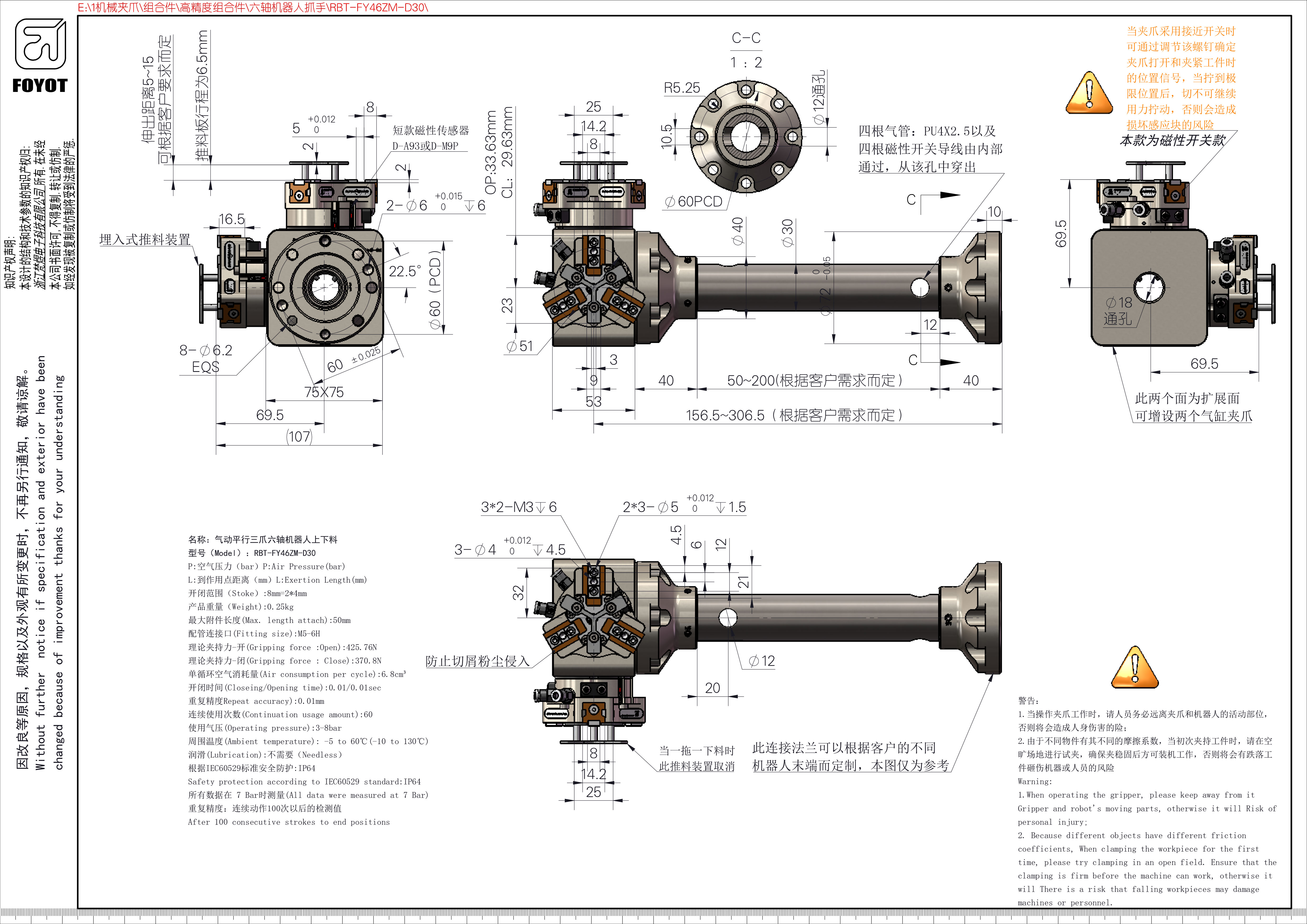

Name:Pneumatic 3-clawSix axis robot loading and unloading

Model:RBT-FY46ZM-D30

P(bar):Air Pressure(bar)

L:Exertion Length(mm)

Stoke:8mm=2*4mm

Weight:0.25kg

Max.length attach:50mm

Fitting size:M5-6H

Gripping force:0pen:425.76N

Gripping force:Close:370.8N

Air consumption per cycle:6.8cm³

Closeing,/0 pening time:0.01/0.01sec

Repeat accuracy:0.01mm

Continuation usage amount:60

Operating pressure:3-8bar

Ambient temperature:-5to60℃(-10to130℃)

Lubrication:Needless

Safety protection according to IEC60529 standard:IP64

All data were measured at7Bar

After 100 consecutive strokes to end positions
