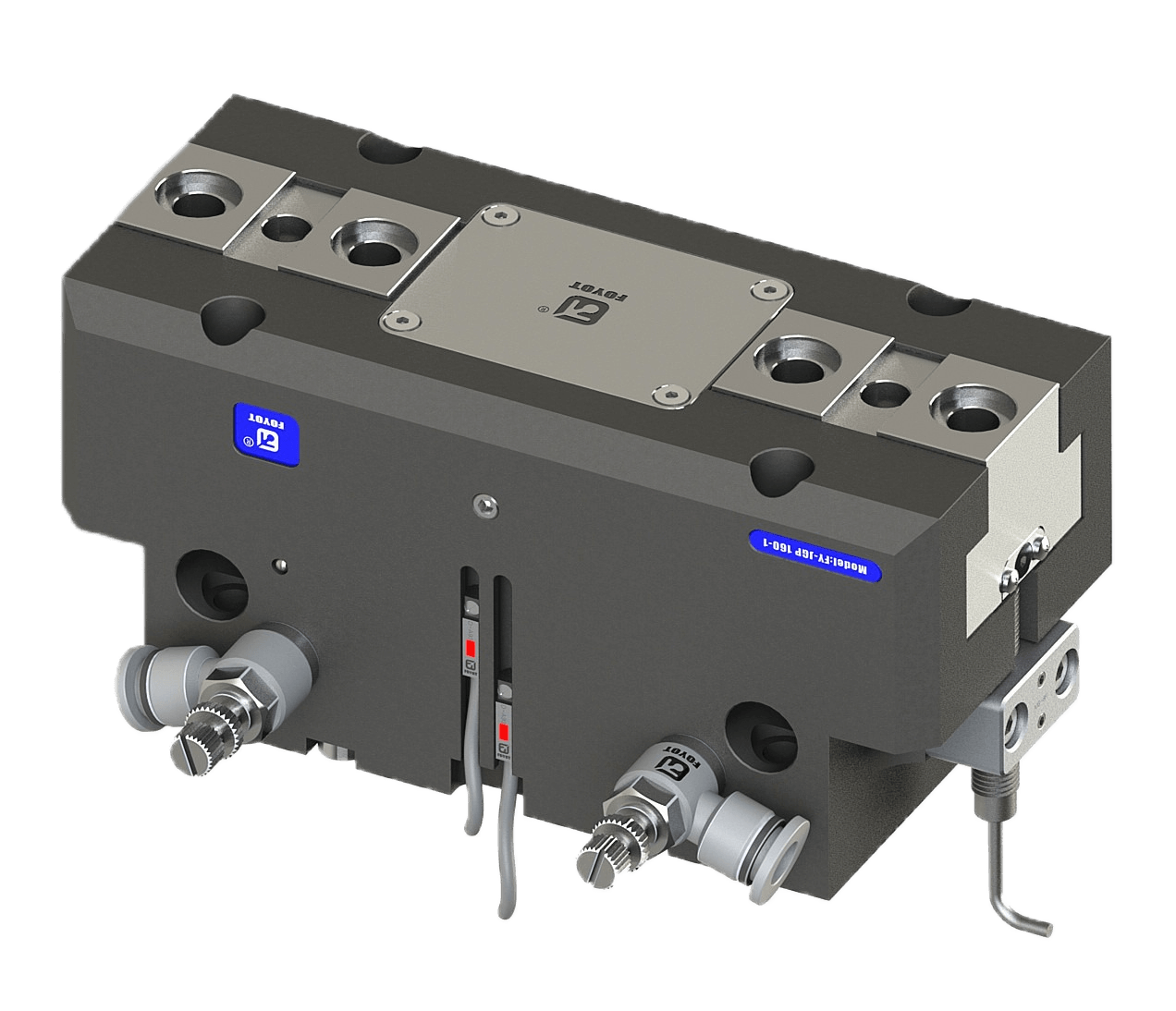

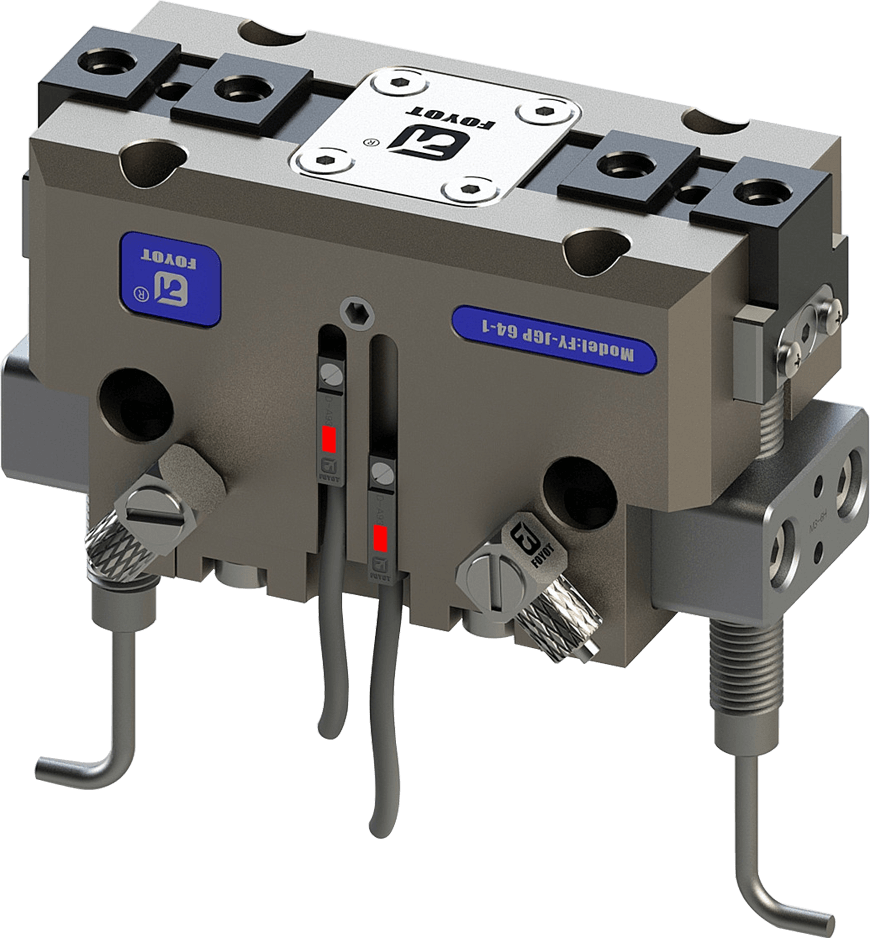

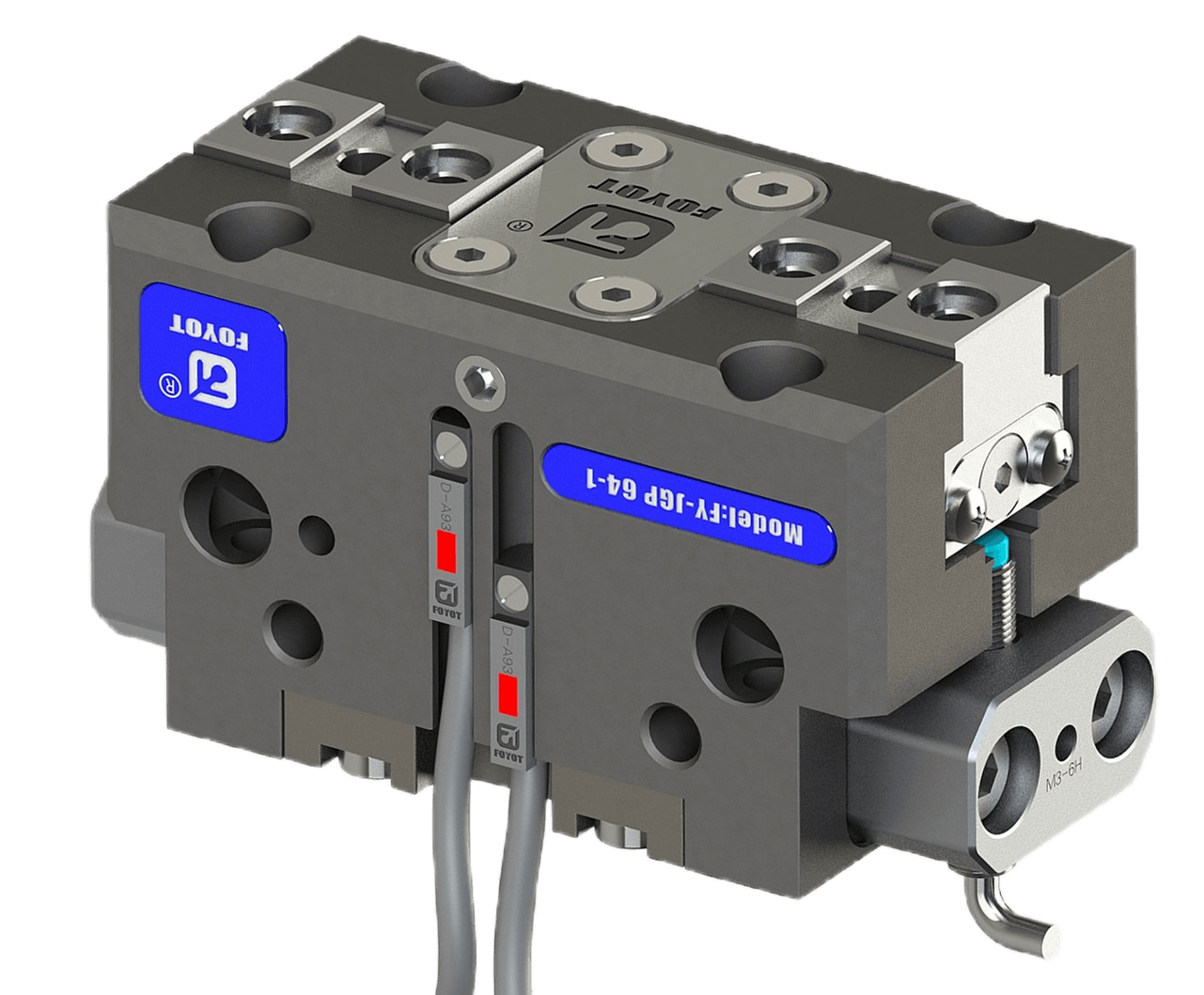

名稱：氣動平行兩爪

Name:Pneumatic paral lel two claws

型號(Mode):FY-JPGP240/1/2

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length:40(mm)

開閉範圍(Stoke):30X2=60mm

産品重量(Weight):8.06kg

最大附件長度(Max.length attach):320mm

配管連接口(Fitting size).:PF(G)1/8"

理論夾持力-開（Gripping force:Open）:5600N

理論夾持力-閉(Gripping force:Close):5300N

單循環空氣消耗量(Air consumption per cycle):900cm³

開閉時間(Closeing/Opening time):0.5/0.5sec

重複精度（Repeat accuracy).:0.01mm

連續使用次數(Continuation usage amount):100

使用氣壓(Operating pressure):5-1Obar

周圍溫度(Ambient temperature):-5to90℃(-10to130℃)

潤滑Lubrication):不需要(Needless)

根據IEC60529標准安全防護：P40

Safety protection according to IEC60529 standard:IP40

所有數據在6Bar時測量(All data were measured at6Bar)

重複精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
