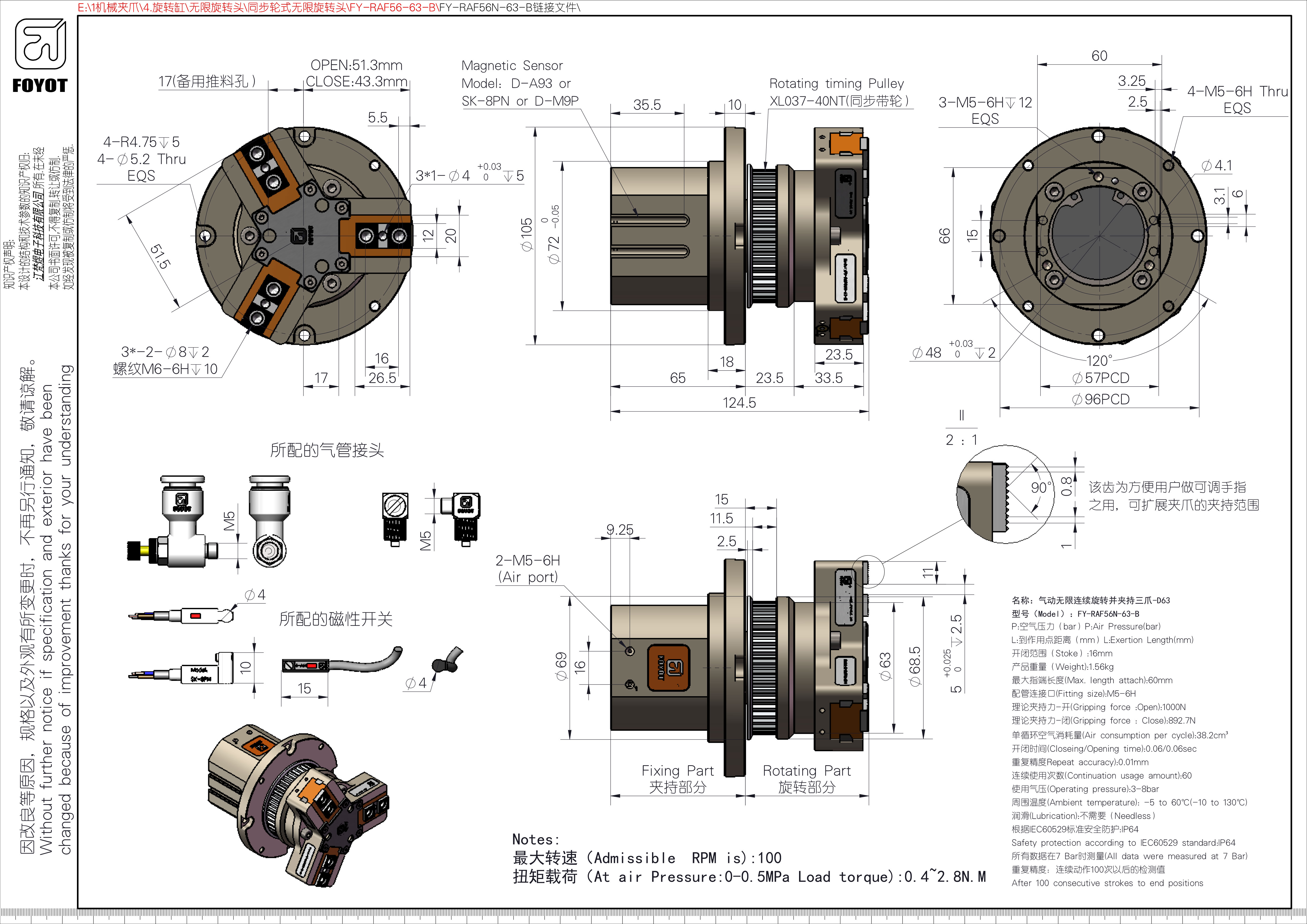

氣動無限連續旋轉並夾持三爪-D63參數
名稱：氣動無限連續旋轉並夾持三爪-D63
型號(Model):FY-RAF56N-63-B
P:空氣壓力(bar)P:Air Pressure(bar)
L:到作用點距離(mm)L:Exertion Length(mm)
開閉範圍(Stoke):16mm
産品重量(Weight):1.56kg
最大指端長度（Max.length attach):60mm
配管連接☐(Fitting size):M5-6H
理論夾持力-開(Gripping force:Open:)1000N
理論夾持力-閉(Gripping force:Close):892.7N
單循環空氣消耗量(Air consumption per cycle):38.2cm3
開閉時間(Closeing/Opening time):0.06/0.06sec
重複精度Repeat accuracy):0.01mm
連續使用次數(Continuation usage amount)):60
使用氣壓(Operating pressure):3-8bar
周圍溫度(Ambient temperature):-5to60℃(-10to130℃)
潤滑Lubrication:不需要(Needless)
根據1EC60529標准安全防護：P64
Safety protection according to IEC60529 standard:IP64
所有數據在7Bar時測量(All data were measured at7Bar)
重複精度：連續動作100次以後的檢測值
After 100 consecutive strokes to end positions
