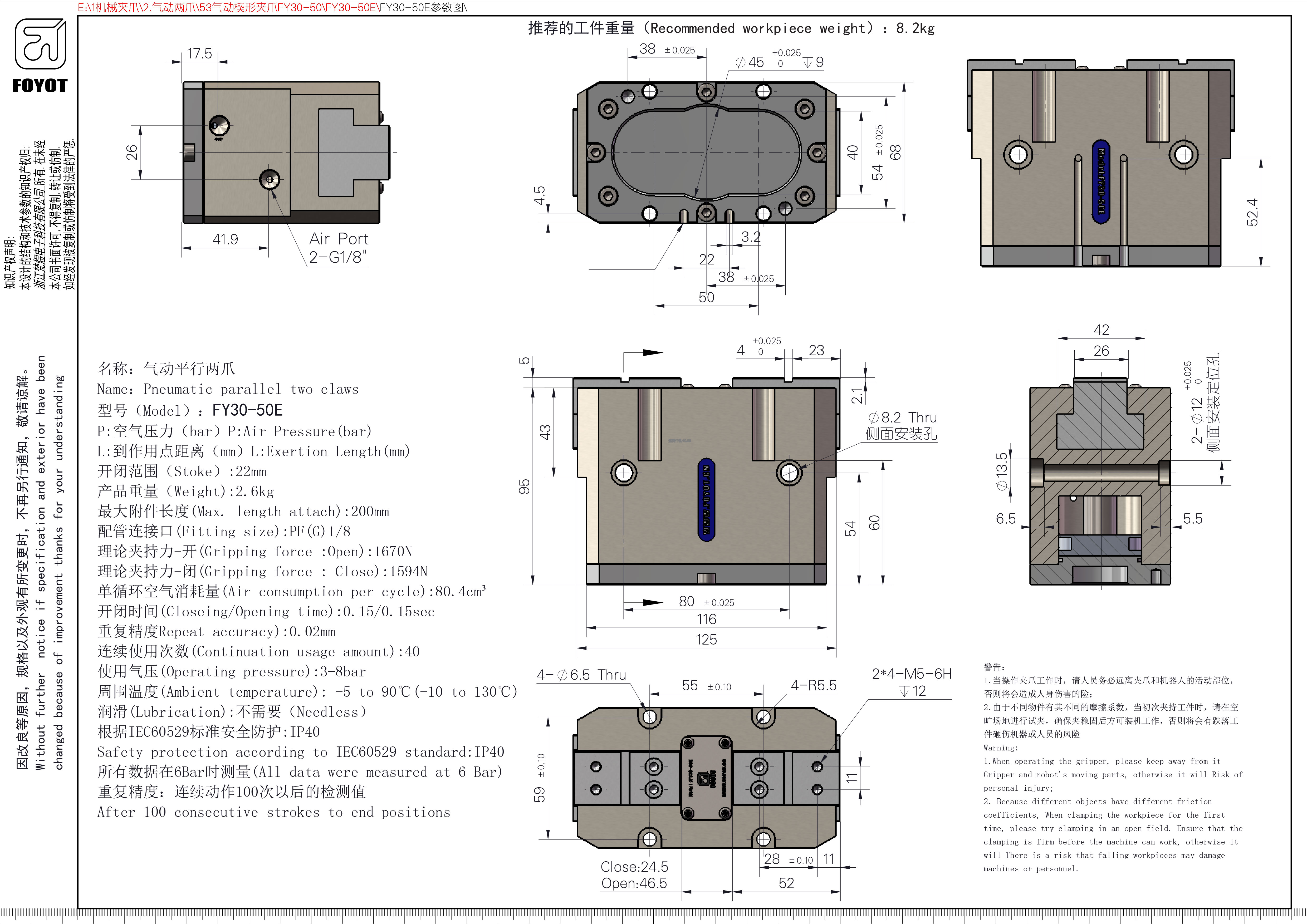

名稱：氣動平行兩爪

Name:Pneumatic parallel

two claws

型號(Mode1):FY30-50E

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm)

開閉範圍(Stoke):22mm

産品重量(Weight):2.6kg

最大附件長度(Max.length attach):200mm

配管連接口(Fitting size):PF(G)1/8”

理論夾持力-開(Gripping force:Open):I67ON

理論夾持力-閉(Gripping force:Close):1594N

單循環空氣消耗量(Air consumption per cycle):80.4cm³

開閉時間(Closeing/,0 pening time):0.15/0.15sec

重複精度（Repeat accuracy):0.O2mm

連續使用次數(Continuation usage amount):40

使用氣壓(Operating pressure).:3-8bar

周圍溫度(Ambient temperature):-5to90C(-l0to130℃)

潤滑(Lubrication):不需要(Needless)

根據IEC60529標准安全防護：IP40

Safety protection according to

IEC60529 standard:IP40

所有數據在6Bar時測量(All data were measured at6Bar)

重複精度：連續動作100次以後的檢測值

After 100

consecutive strokes to end

positions
