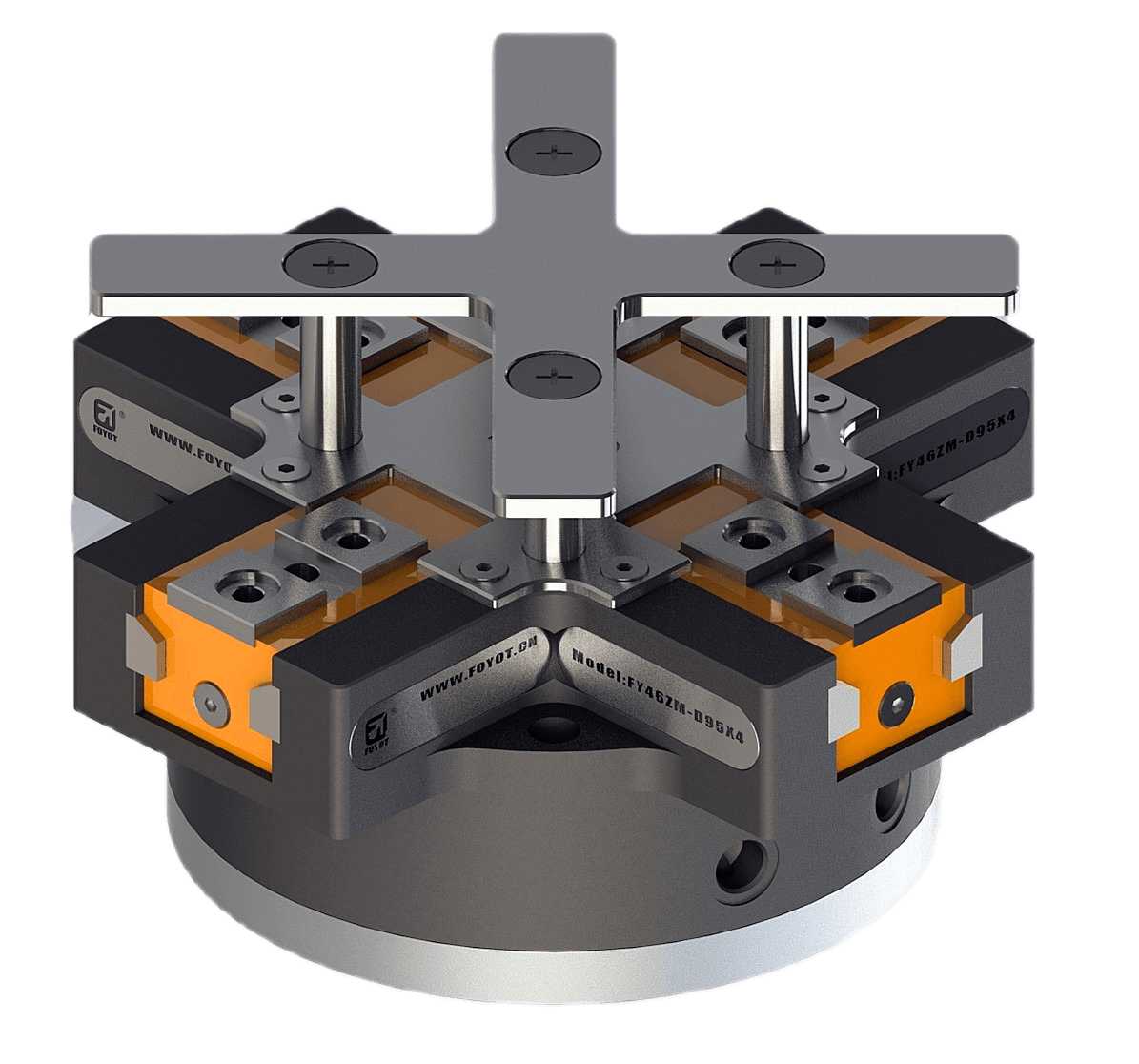

名稱：氣動平行四爪

Name:Pneumatic parallel three claws

型號(Mode I):FY46ZM-D95X4

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm)

開閉範圍(Stoke):26mm

產品重量(Veight):3.2kg

最大附件長度(Max.length attach):120mm

配管連接口(Fitting size):PF(G）1/8"

理論夾持力-開(Gripping force:Open):3502N

理論夾持力-閉(Gripping force:Close):3364.8N

開閉時間（Closeing/Opening time.:0.22/0.22ec

重復精度Repeat accuracy):0.02mm

連續使用次數(Continuation usage amount):40

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature):-5to60℃(-10 to 130℃)

潤滑(Lubrication):不需要(Needless)

根據IEC60529標準安全防護：P64

Safety protection according to IEC60529

standard:IP64

所有數據在7Bar時測量(All data were measured at 7 Bar)

重復精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
