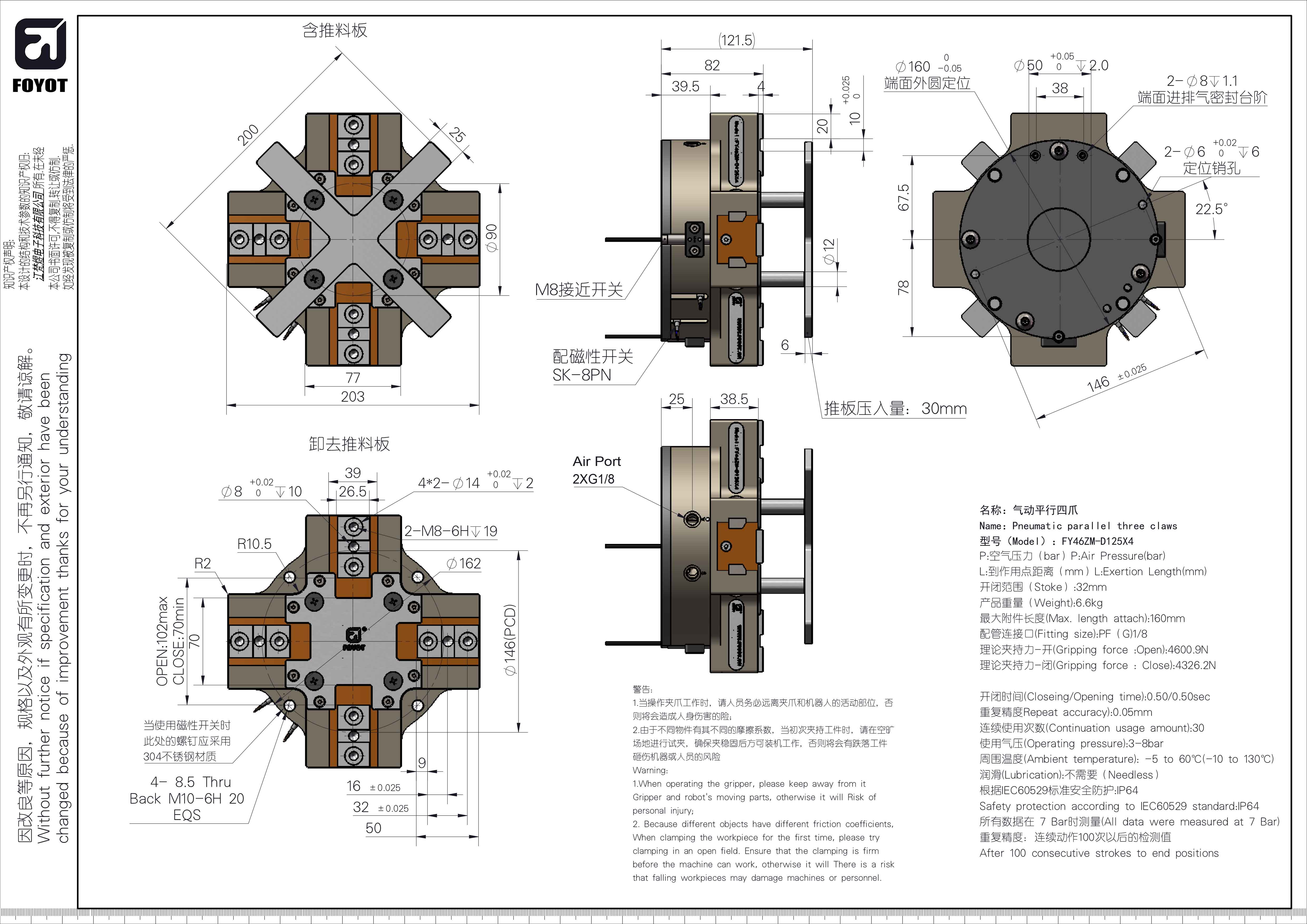

名稱：氣動平行四爪

Name:Pneumatic paral lel three claws

型號(Mode I):FY46ZM-D125X4

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm)

開閉範圍(Stoke):32mm

產品重量(Veight):6.6kg

最大附件長度（Max.length attach:160mm

配管連接口（Fitting size:PF(G）1/8"

理論夾持力-開（Gripping force:Open:4600.9N

理論夾持力-閉（Gripping force:Close:4326.2N

開閉時間（Closeing./Opening time:0.50/0.50sec

重復精度Repeat accuracy):0.05mm

連續使用次數(Continuation usage amount):30

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature:-5to60℃(-10to130℃)

潤滑Lubrication):不需要(Needless)

根據IEC60529標準安全防護：P64

Safety protection according to IEC60529 standard:P64

所有數據在7Bar時測量(All data were measured at7Bar)

重復精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
