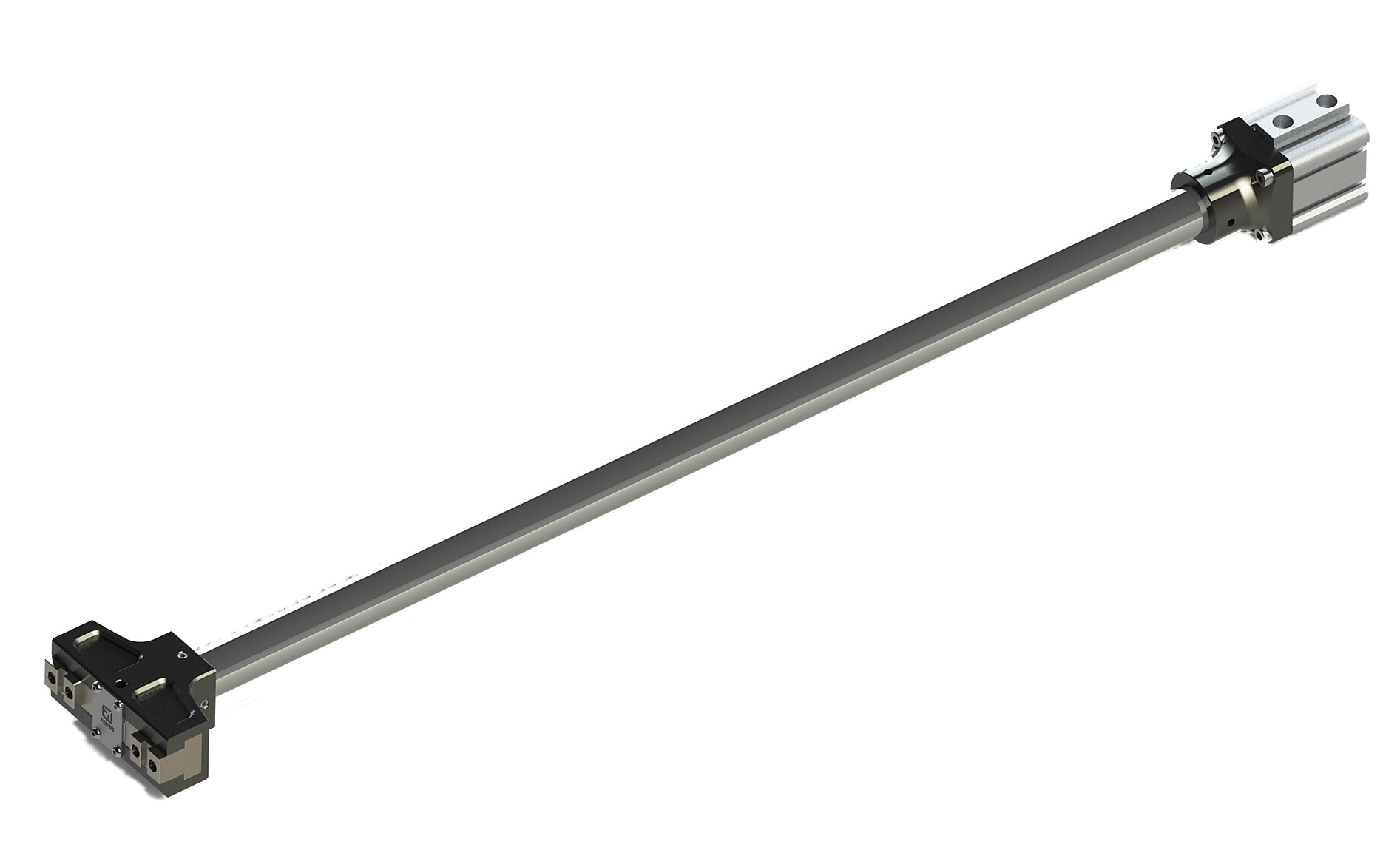

名稱：導軌款耐高溫鍛造平行夾爪-D32

Name:Pneumatic parallel three claws

型號(ModeI):FY13-D32-HX540

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm)

開閉範圍(Stoke):12mm

產品重量(Weight):4.05kg(長540mm時)

最大附件長度(Max.length attach):60mm

配管連接口(Fitting size):G1/8"

理論夾持力-開(Gripping force:Open):459NN

理論夾持力-閉(Gripping force:Close):430N

開閉時間(Closeing/Opening time):0.02/0.02sec

重復精度(Repeat accuracy):0.02mm

連續使用次數(Continuation usage amount):60

使用氣壓(Operating pressure):3-8bar

潤滑(Lubrication):不需要(Needless)

根據IEC60529標準安全防護：IP64

所有數據在7Bar時測量（All data were measured at 6 Bar)

重復精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
