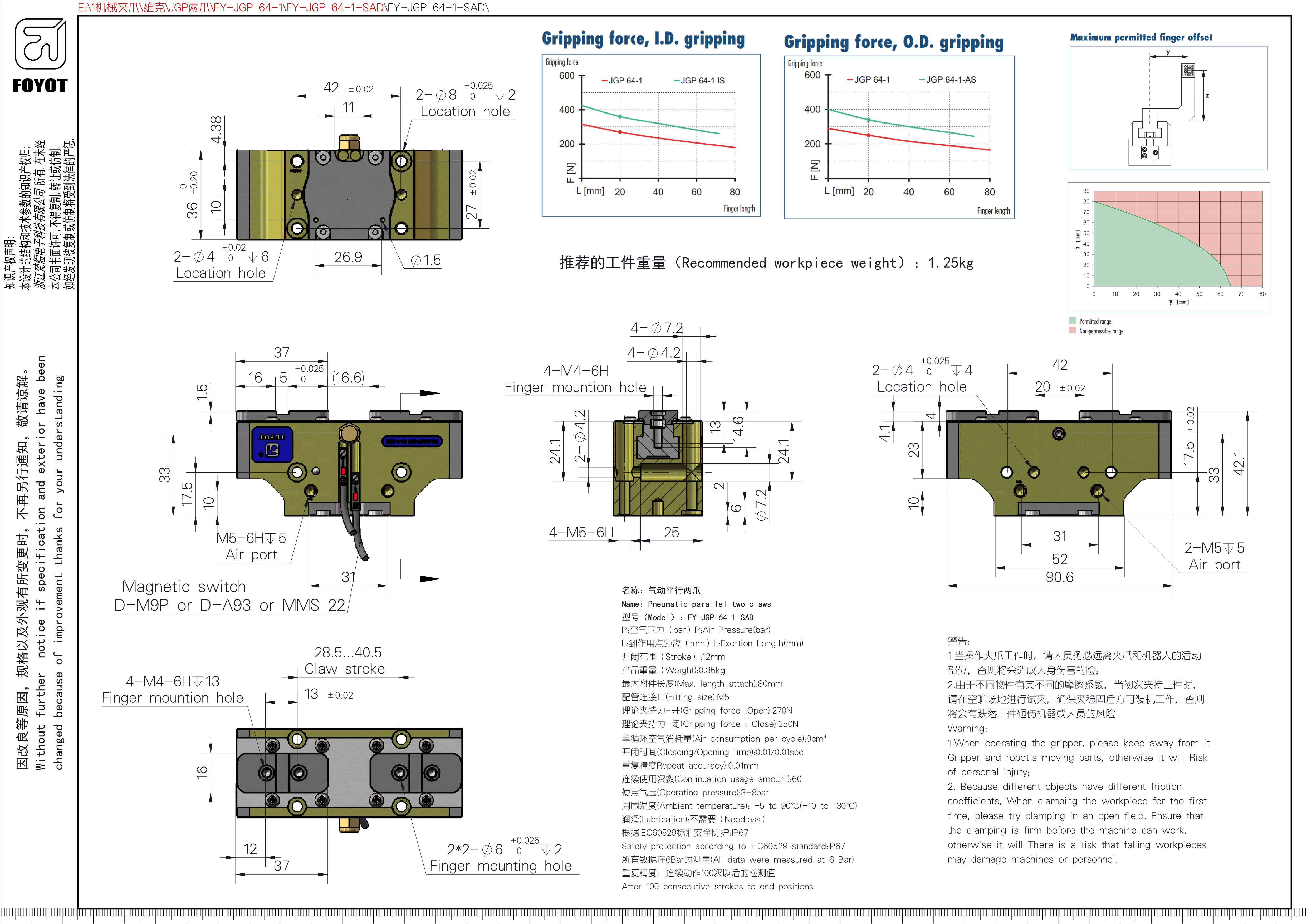

名稱：氣動平行兩爪

Name:Pneumatic paral lel two claws

型號(Mode I):FY-JGP64-1-SAD

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm

開閉範圍(Stroke)：12mm

産品重量(Weight):0.35kg

最大附件長度(Max.length attach):80mm

配管連接口(Fitting size):M5

理論夾持力-開（Gripping force:Open:270N

理論夾持力-閉(Gripping force:Close):250N

單循環空氣消耗量(Air consumption per cycle):9cm³

開閉時間(Closeing./Opening time):0.01/0.01sec

重複精度Repeat accuracy):0.01mm

連續使用次數(Continuation usage amount)):60

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature:-5to90℃(-10to130℃)

潤滑(Lubrication):不需要(Needless)

根據IEC60529標准安全防護：IP67

Safety protection according to IEC60529 standard:IP67

所有數據在6Bar時測量(All data were measured at6Bar)

重複精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
