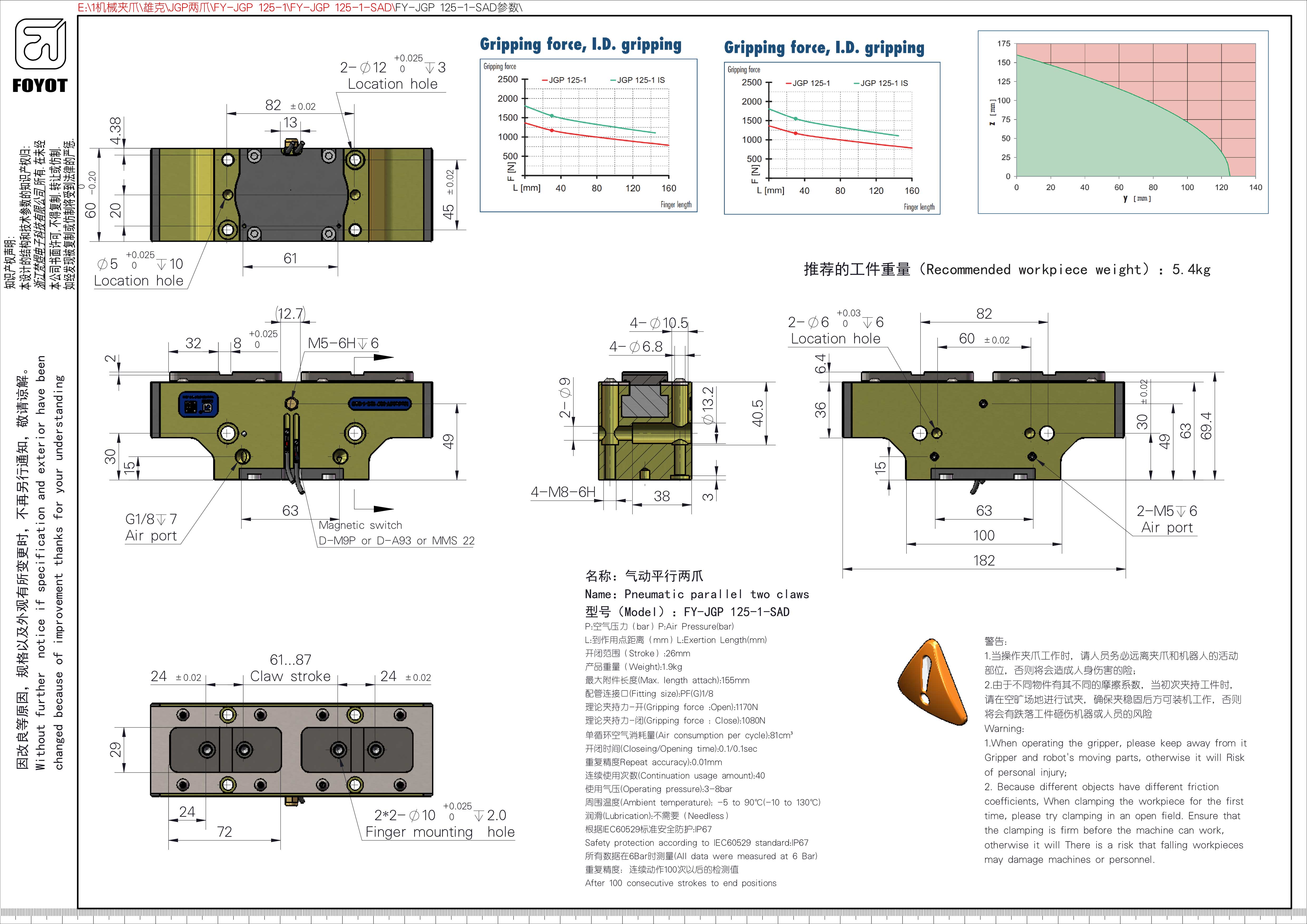

名稱：氣動平行兩爪

Name:Pneumatic paral lel two claws

型號(ModeI):FY-JGP125-1-SAD

P:空氣壓力(bar)P:Air Pressure(bar)

L:到作用點距離(mm)L:Exertion Length(mm)

開閉範圍(Stroke):26mm

産品重量(Weight):1.9kg

最大附件長度(Max.length attach):155mm

配管連接口(Fitting size):PF(G)1/8

理論夾持力-開(Gripping force:Open)::1170N

理論夾持力-閉(Gripping force:Close):1080N

單循環空氣消耗量(Air consumption per cycle):81cm³

開閉時間(Closeing/Opening time):0.1/0.1sec

重複精度(Repeat accuracy).:0.01mm

連續使用次數(Continuation usage amount)):40

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature):-5to90℃(-10to130℃)

潤滑(Lubrication:不需要（Needless)

根據EC60529標准安全防護：IP67

Safety protection according to IEC60529 standard:IP67

所有數據在6Bar時測量(All data were measured at6Bar)

重複精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
