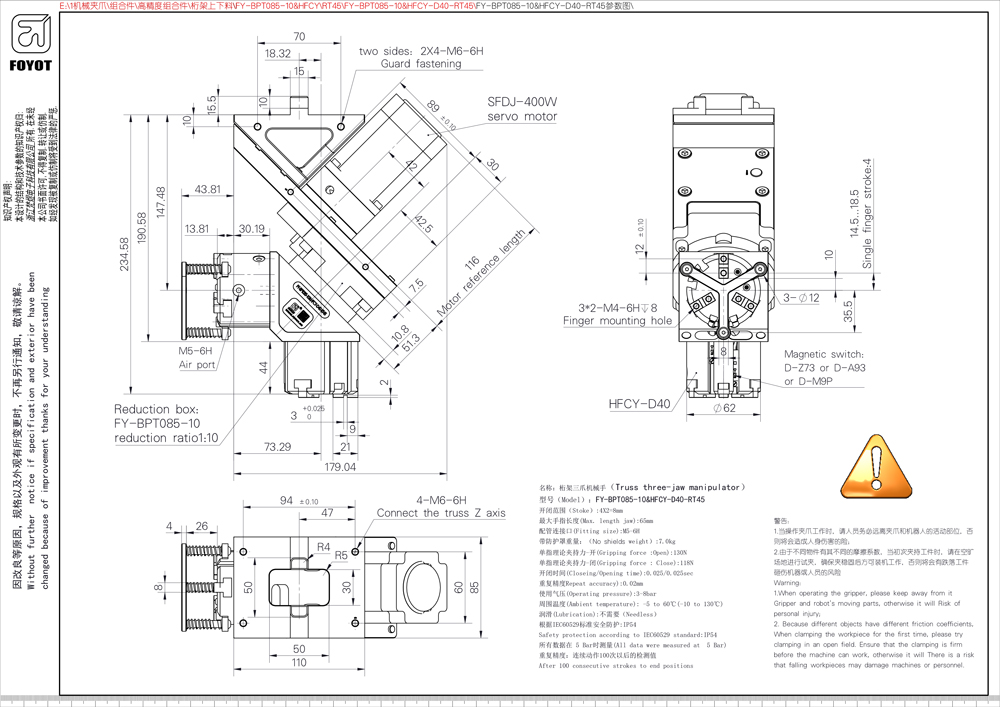

名称：桁架三爪机械手(Truss three-jaw manipulator)

型号(Mode1):FY-BPT085-10&HFCY-D40-RT45

开闭范围(Stoke):4X2=8mm

最大手指长度(Max.length jaw):65mm

配管连接口(Fitting size):M5-6H

带防护罩重量：(No shields weight):7.Okg

单指理论夹持力-开(Gripping force:Open):l30N

单指理论夹持力-闭(Gripping force:Close):ll8N

开闭时间(C1 oseing,/0 pening time):0.025/0.025sec

重复精度Repeat accuracy):0.02mm

使用气压(Operating pressure):3-8bar

周围温度(Ambient temperature):-5to60℃(-10to130C)

润滑(Lubrication):不需要(Needless)

根据IEC60529标准安全防护：IP54

Safety protection according to IEC60529 standard:IP54

所有数据在5Bar时测量(All data were measured at5Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
