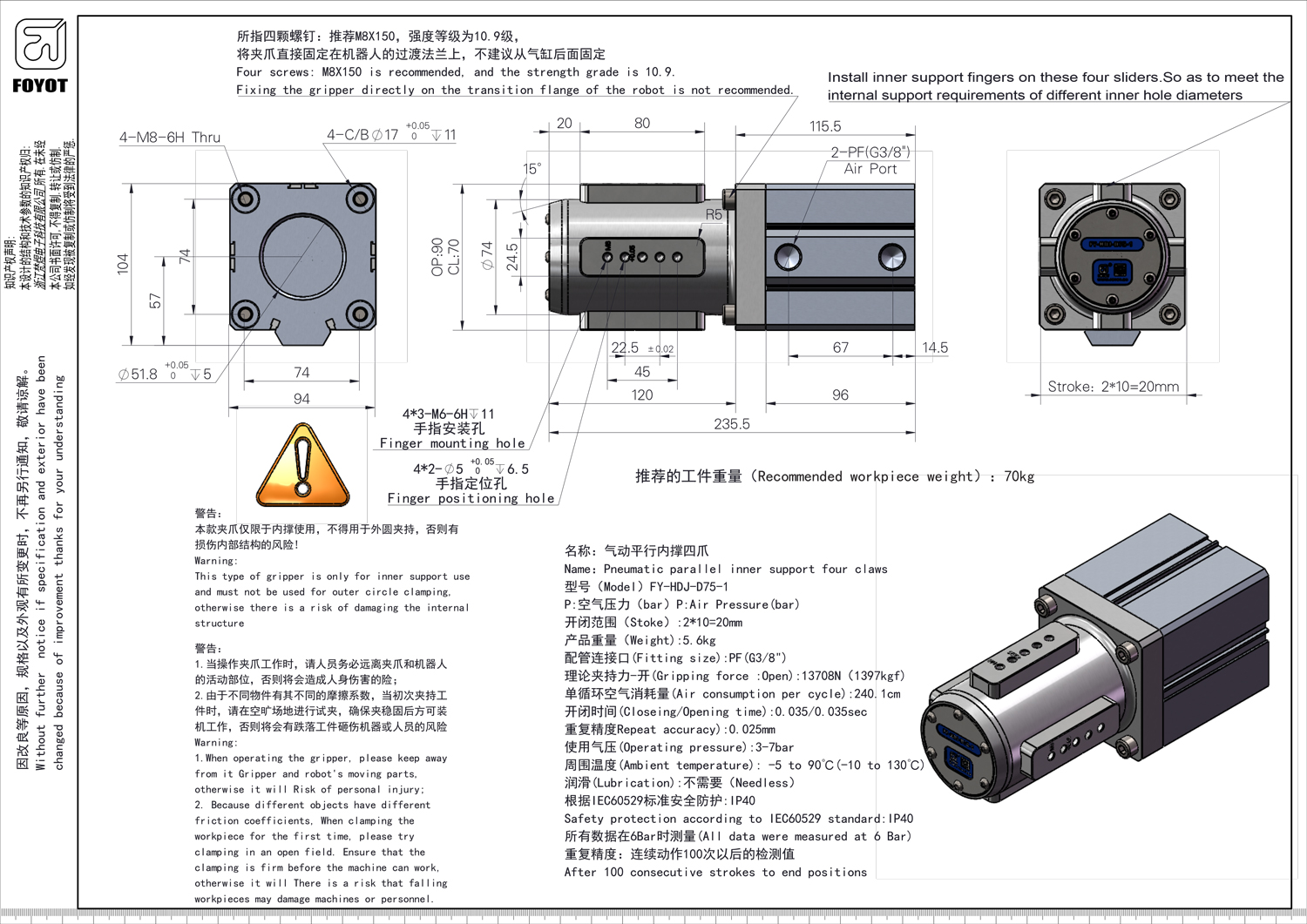

名称：气动平行内撑四爪

Name:Pneumatic paral lel inner support four claws

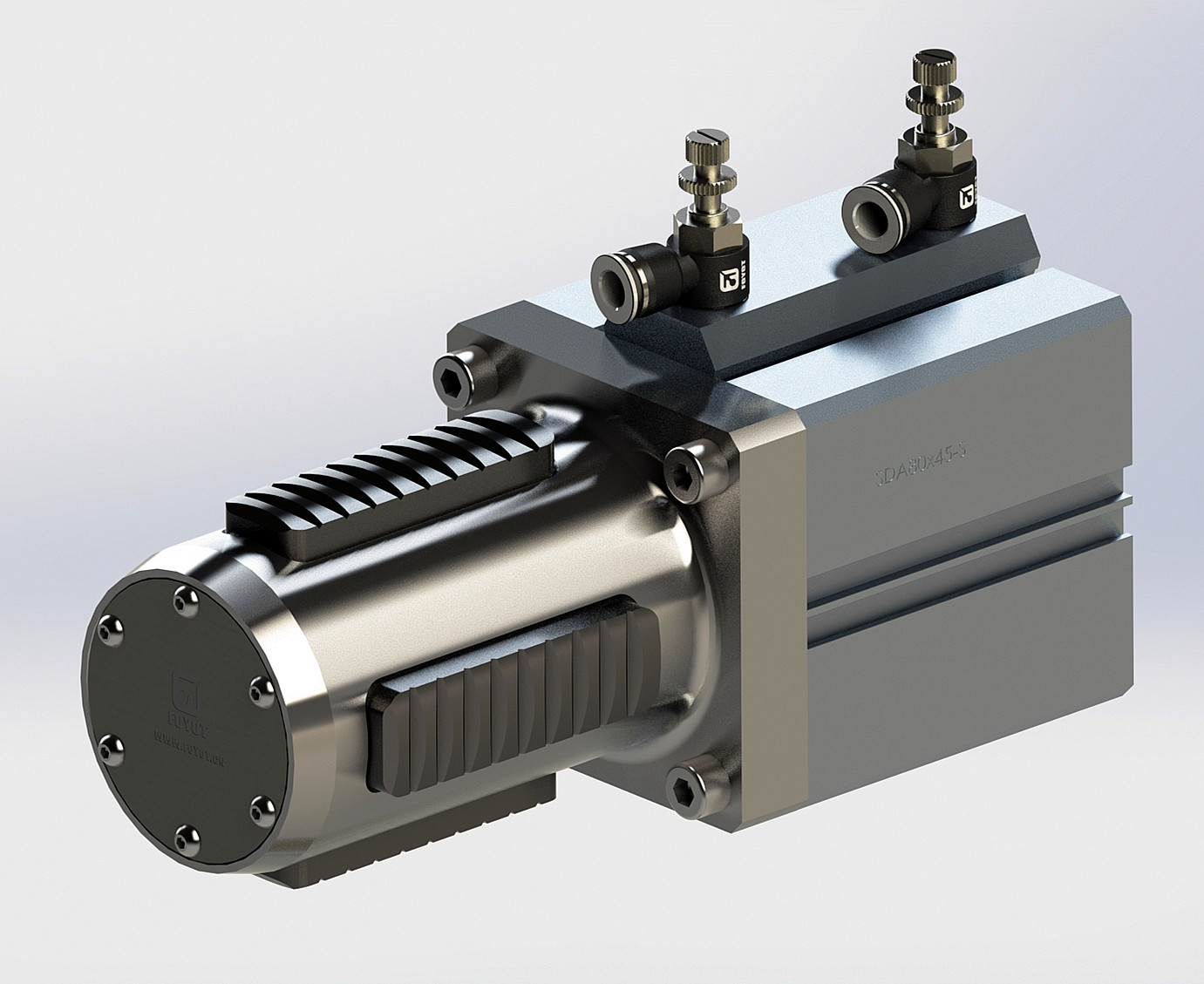

型号(Mode I)FY-HDJ-D75-1

P:空气压力(bar)P:Air Pressure(bar)

开闭范围(Stoke):2*10=20mm

产品重量(We ight):5.6kg

配管连接口(Fitting size):G3/8"

理论夹持力-开(Gripping force:0pen):13708(1397kgf)

单循环空气消耗量(Air consumption per cycle):240.1cm

开闭时间(Closeing/0 pening time):0.035/0.035sec

重复精度Repeat accuracy):0.025mm

使用气压(Operating pressure):3-7bar

周围温度(Ambient temperature):-5to90C(-10to130C)

润滑(Lubrication):不需要(Needless)

根据1EC60529标准安全防护：1P40

Safety protection according to lEC60529 standard:IP40

所有数据在Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
