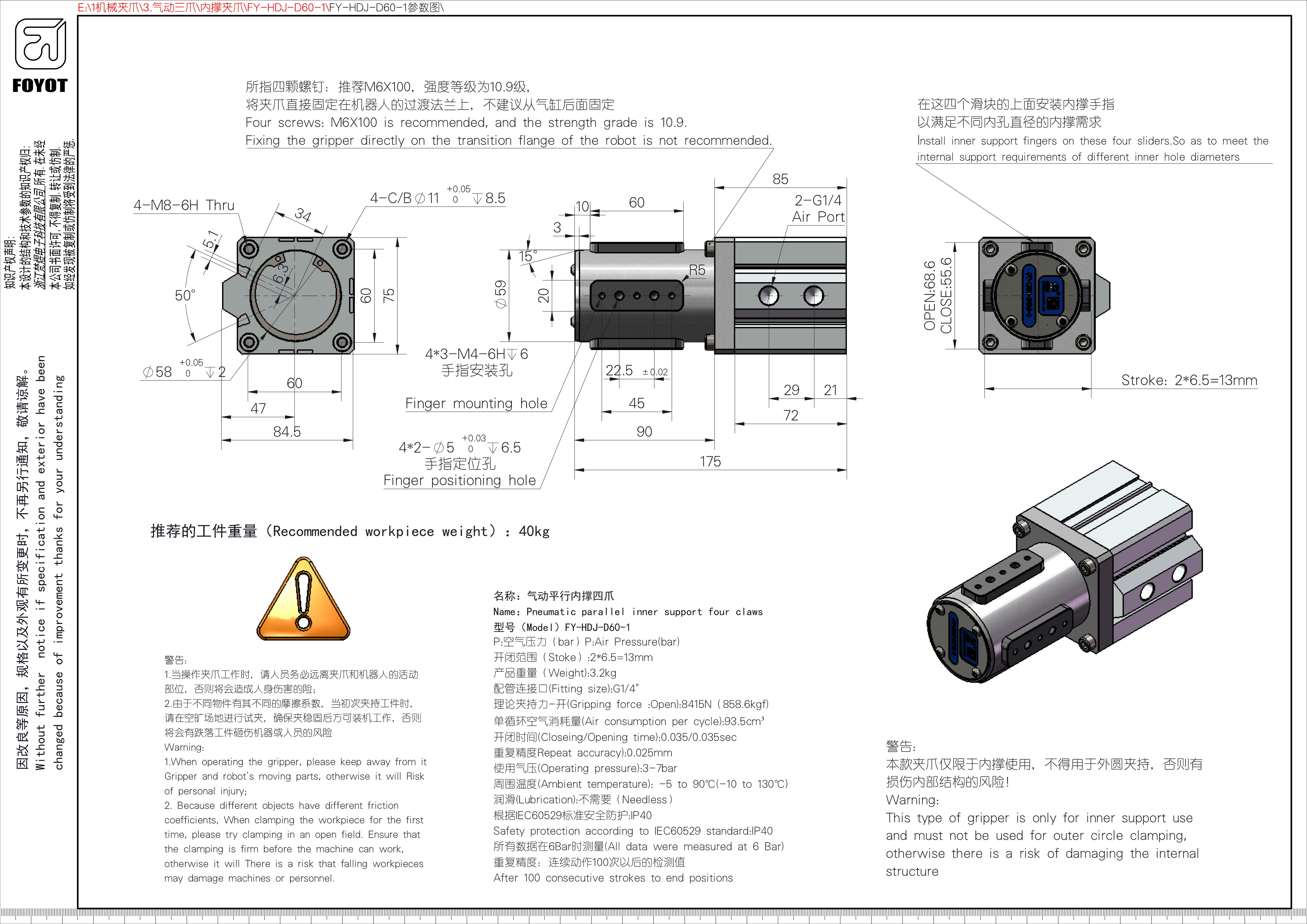

名称：气动平行内撑四爪

Name:Pneumatic parallel inner support four claws

型号(Mode l)FY-HDJ-D60-1

P:空气压力(bar)P:Air Pressure(bar)

开闭范围(Stoke):2*6.5=13mm

产品重量(Veight):3.2kg

配管连接▣(Fitting size:G1/4"

理论夹持力-开(Gripping force:Open:8415N(858.6kgf)

单循环空气消耗量(Air consumption per cycle):93.5cm3

开闭时间(Closeing/.Opening time):0.035/0.035sec

重复精度Repeat accuracy).:0.025mm

使用气压(Operating pressure):3-7bar

周围温度(Ambient temperature):-5to90℃(-10to130℃)

润滑Lubrication):不需要(Needless)

根据1EC60529标准安全防护：P40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
