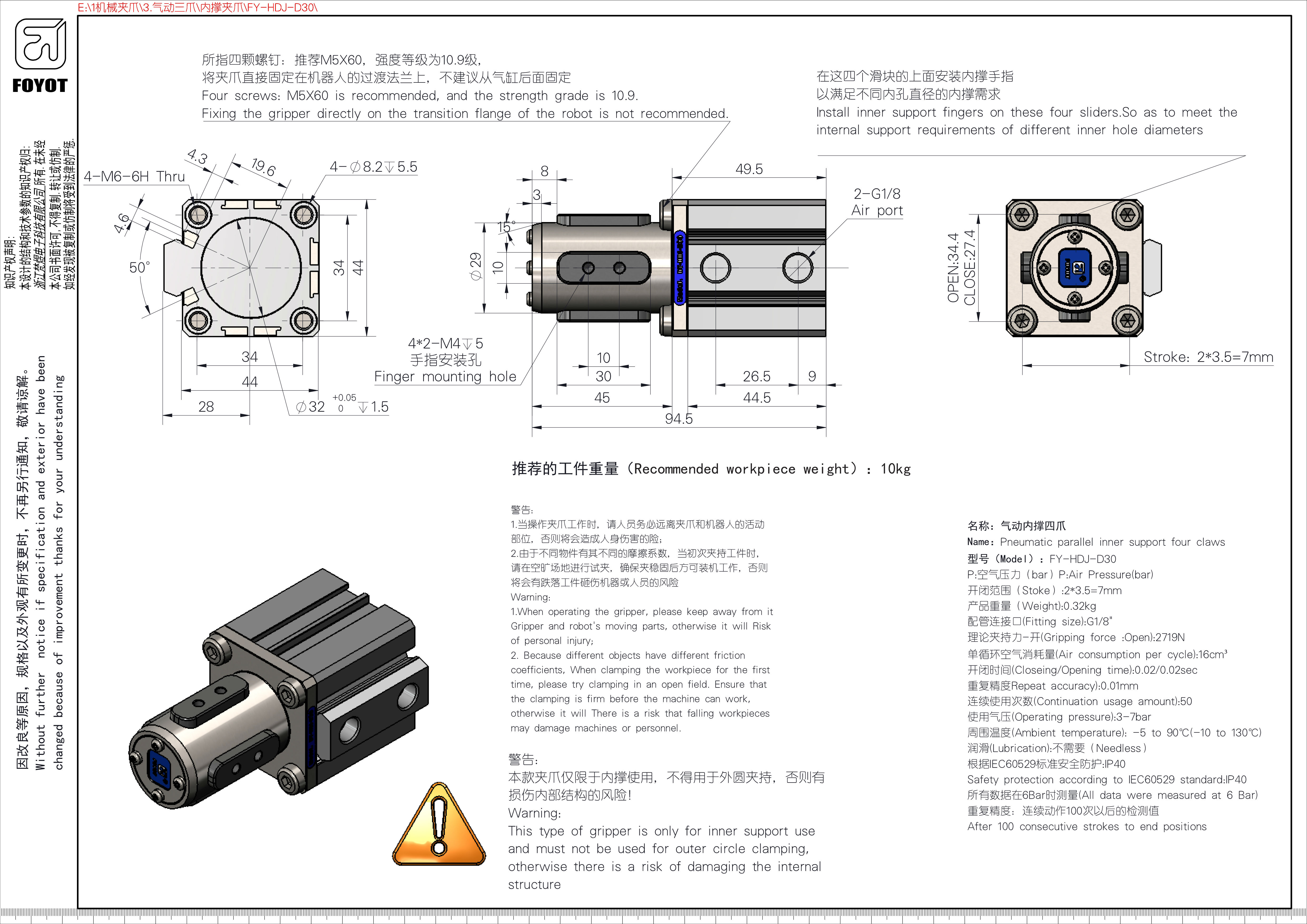

名称：气动内撑四爪

Name:Pneumatic parallel inner support four claws

型号(Mode I):FY-HDJ-D30

P:空气压力(bar)P:Air Pressure(bar)

开闭范围(Stoke)：2*3.5=7mm

产品重量(Veight).:0.32kg

配管连接☐(Fitting size):G1/8"

理论夹持力-开（Gripping force:Open:2719N

单循环空气消耗量(Air consumption per cycle):16cm3

开闭时间(Closeing/Opening time):0.02/0.02sec

重复精度Repeat accuracy:0.01mm

连续使用次数(Continuation usage amount):50

使用气压（Operating pressure:3-7bar

周围温度(Ambient temperature):-5to90℃(-10to130℃)

润滑(Lubrication)::不需要(Needless)

根据IEC60529标准安全防护：P40

Safety protection according to IEC60529 standard:IP40

所有数据在6Bar时测量(All data were measured at6Bar)

重复精度：连续动作100次以后的检测值

After 100 consecutive strokes to end positions
